Upgrade & Restore Your Tire Changer's Pivot Assemblies

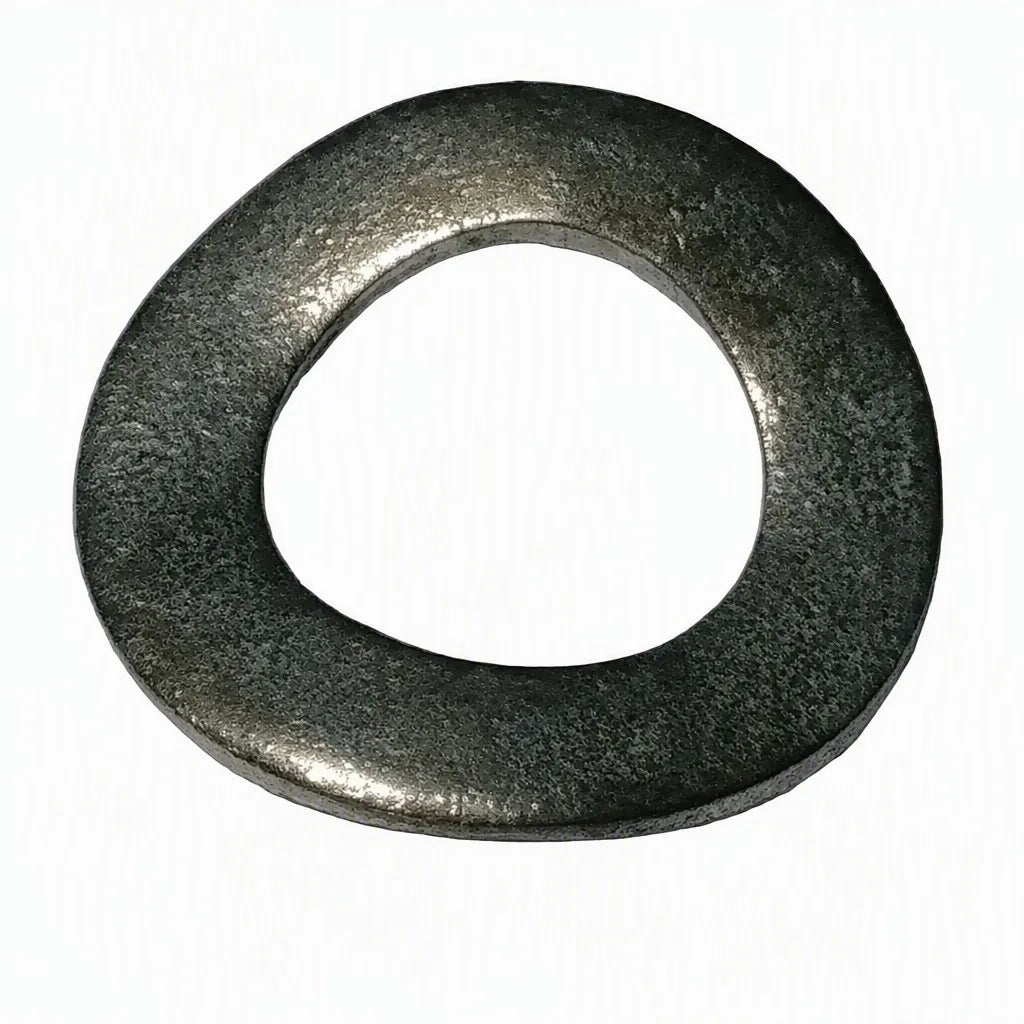

The 5"/16" Wave Washer is a heavy-duty mechanical washer engineered to distribute clamping loads evenly and reduce surface friction on moving pivot points and structural joints of professional tire changers.

Regular maintenance and timely replacement of warped, rusted, or scored washers are critical to preventing mechanical binding on main hinge pins and keeping assemblies pivoting smoothly.

Machine Location:

This washer is located directly on vertical hinge pins, swing arm pivot joints, or bead breaker arm cylinders.

Key Features & Specifications

• Hardened Steel Body: Stamped from high-strength steel to resist flattening, warping, or scoring under heavy loads.
• Optimal Load Distribution: Prevents structural fasteners from wearing into softer castings or aluminum blocks.
• Rust Resistance: Zinc-plated finish provides defense against shop humidity and compressor condensation.

Complete Machine Compatibility

This universal replacement part is documented and verified to fit the following Coats® equipment models:

• Coats 50/60/70/80/90 X-Model Series Tire Changer
• Coats 5030 A/E Tire Changer
• Coats 5035 A/E Tire Changer
• Coats 5040 A/E Tire Changer
• Coats 50Xx Series Tire Changer
• Coats 6050 A/E/Ax/Ex Tire Changer
• Coats 6060 Ax/Ex Tire Changer
• Coats 6065 A/E/Ax/Ex Tire Changer
• Coats 85613210 Maxx Model
• Coats APX Rim Clamp Tire Changer
• Coats Dt Maxx
• Coats Gts-70 Ca

Frequently Bought Together / Related Parts

These drawing-adjacent parts connect directly next to this part on your parts breakdown and assembly drawings:

• Coats Hex Head Cap Screw 1/4"-20" X 1-1/4" (Part # 8120321)
• Coats 3/4" Valve (Part # 8106298)
• Coats Pivot Plate (Part # 8181731)
• Coats 1/4" NPT Brass Close Nipple (Part # 8182366)
• Coats 6" To 20" Rim Clamping Jaw Set Of 4" 8182247-4 (Part # 8182247)
• Coats Foot Pedal Valve Not Spring Loaded (Part # 8181986)
• Coats Long Pedal Spacer (Part # 8182358)
• Coats Accessory Tray, Plastic (Part # 8181964)
• Coats Valve, Quick Exhaust (Part # 8181191)
• Coats Nylon Insert Lock Nut 1/4"-20" (Part # 8181369)

Alternative / Cross-Reference Part Numbers: SVI BW-1219-81 | Coats 8181981 | Distributor AM8181981
