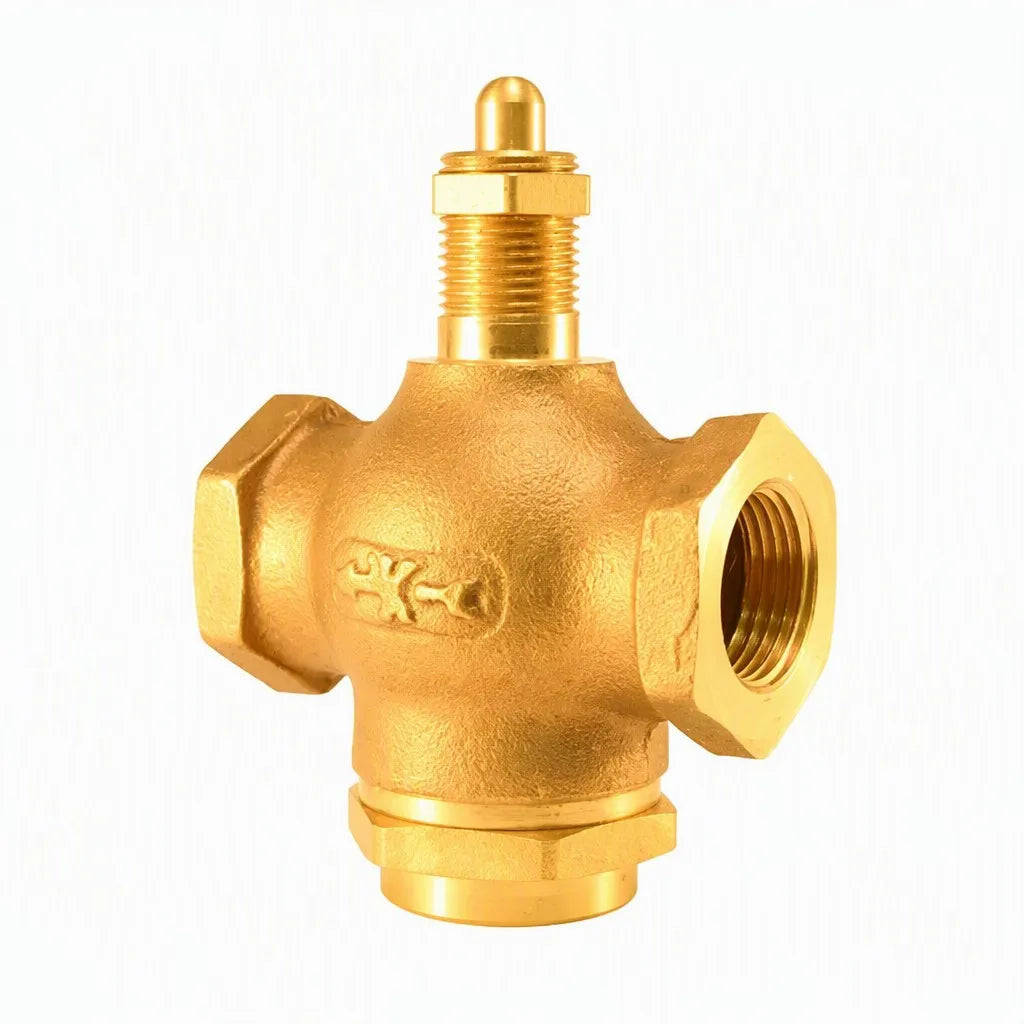

Coats 3/4 Valve (AM8106298)

3"/4" Valve (Coats 8106298)

Price

  • $115.65
  • $124.90

Quantity

Shipping calculated at checkout.

Upgrade & Restore Your Tire Changer's Performance

The 3"/4" Valve is a high-quality direct-replacement part designed for professional tire changers. Engineered to precise factory tolerances, it replaces original equipment part number 8106298 to keep your machinery in peak operating condition.

Timely replacement of worn mechanical hardware and consumables is critical to avoiding major component damage and reducing expensive bay downtime.

📋 Factory Service Bulletin Guidance:

Update Date: November 2012
Subject: Rim Clamp - Dual Inflation Valve

We have produced a pilot run of dual stage inflation valve assemblies on 25 Model 5040 Rim Clamp units. Following are the part numbers that were removed from the original assembly: 8000378, 8104673, 8104613, 8104611, 8104600, 8106298, 8184469, 8101898, and 8182020. Following are the part numbers that were added to the new assembly: 8184467, 8104573 When available, the part number for the dual stage inflation valve will be 85607575. Contact your RSM if one is needed prior to full production release. We will want the defective valve returned to Hennessy.

Update Date: December 2015
Subject: Automatic Water Separator

One of the new water separators (85609766) was replaced because the automatic drain seemed to be stuck in the open position, allowing water & air to drain constantly. Upon investigation it was determined that the water separator was working properly. The water drain at the bottom of the separator is opened by air pressure from the bead sealer. If the bead seal valve (8106298) is bypassing a small amount of air then the bead seal system pressure can increase and open the drain valve. The plunger will open at less than 10psi. WATER &\OR AIR BLOWING OUT HERE

Machine Location:

This part is positioned in the primary mechanical assemblies or utility configurations of the tire changer.

Key Features & Specifications

  • Engineered Longevity: Built from durable materials designed to handle high-volume shop environments.
  • Direct Fitment: Designed to replace original hardware with no modifications or alignment adjustments required.
  • OEM Specifications: Fits perfectly to prevent mechanical play and preserve factory-spec alignment.

Complete Machine Compatibility

This universal replacement part is documented and verified to fit the following Coats® equipment models:

  • Coats 4050 Center Post
  • Coats 4050A Tire Changer
  • Coats 4070 Tire Changer
  • Coats 50/60/70/80/90 X-Model Series Tire Changer
  • Coats 5030 A/E Tire Changer
  • Coats 5035 A/E Tire Changer
  • Coats 5040 A/E Tire Changer
  • Coats 50Xx Series Tire Changer
  • Coats 6050 A/E/Ax/Ex Tire Changer
  • Coats 6060 Ax/Ex Tire Changer
  • Coats 6065 A/E/Ax/Ex Tire Changer
  • Coats 7Xxx Series Tire Changer (Prior 2010)

Frequently Bought Together / Related Parts

These drawing-adjacent parts connect directly next to this part on your parts breakdown and assembly drawings:

🔧 Pro Installer Tip:

Always refer to your equipment's official parts manual before final installation to confirm the exact alignment and torque sequence.

Alternative / Cross-Reference Part Numbers: SVI BW-1662-98 | Coats 8106298 | Distributor AM8106298

AMMCO and COATS are registered trademarks of The Coats Company. AEPN Inc. is not associated in any way with The Coats Company, Inc. Any names, symbols, numbers, and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers.
