Compressed Air Oil Injector | The Coats Company 85610869

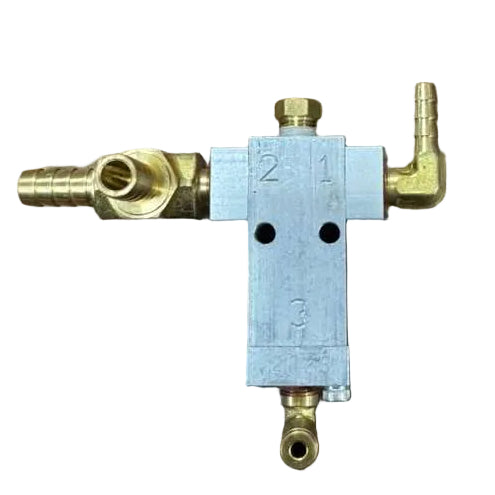

Compressed Air Oil Injector (Coats 85610869)

Price

  • $287.50
  • $312.50

Quantity

Shipping calculated at checkout.

Upgrade & Restore Your Tire Changer's Performance

The Compressed Air Oil Injector is a high-quality direct-replacement part designed for professional tire changers. Engineered to precise factory tolerances, it replaces original equipment part number 85610869 to keep your machinery in peak operating condition.

Timely replacement of worn mechanical hardware and consumables is critical to avoiding major component damage and reducing expensive bay downtime.

📋 Factory Service Bulletin Guidance:

Update Date: August 2019
Subject: Oil Injector (85610869) Test Procedure.

Always DISCONNECT THE ELECTRICAL POWER before servicing equipment. This prevents electrical shock or accidental movement of the systems operated by the electrical power. Always DISCONNECT AIR SUPPLY before servicing equipment. This prevents accidental movement of systems operated by com- pressed air which may result in personal injury. BLEED THE AIR SYSTEM by actuating all the valves. 1. The following instruction is used to test the MaXX Tire Changer Oil Injector (85610869). 2. Locate an Air Nozzle (standard with quick disconnect), Male Elbow Fitting (8181997) or Straight Fitting, and a short length of 1/8" OD Nylon Tubing. 3. Thread the fitting into the Air Nozzle outlet port and tighten with a wrench. 4.

Update Date: February 2021
Subject: Oil Injector Change

Oil Injector 81846751 Oil Injector 85610869 As of Dec 21, 2020, the 81846751 Oil Injector has been replaced by the 85610869 Oil Injector on most model tire changers. The APX, RC150, RC200, & all Baseline models will continue to use the 81846751 oil injector for now, and this injector will continue to be available as a service part until further notice. The 85610869 injector works with air pressure sent to the clamp cylinder, as opposed to the mechanical plunger of the 81846751 injectors. Important: An air lock will form if the hose between the reservoir and injector is ever empty of oil. In this case, after filling the reservoir tank, the line must be bled of air at the injector connection as follows: 1.

Machine Location:

This part is positioned in the primary mechanical assemblies or utility configurations of the tire changer.

Key Features & Specifications

  • Engineered Longevity: Built from durable materials designed to handle high-volume shop environments.
  • Direct Fitment: Designed to replace original hardware with no modifications or alignment adjustments required.
  • OEM Specifications: Fits perfectly to prevent mechanical play and preserve factory-spec alignment.

Complete Machine Compatibility

This universal replacement part is documented and verified to fit the following Coats® equipment models:

  • Coats 85613210 Maxx Model
  • Coats APX Oil Injector Replacement Kit 85614319
  • Coats Dt Maxx

Frequently Bought Together / Related Parts

These drawing-adjacent parts connect directly next to this part on your parts breakdown and assembly drawings:

🔧 Pro Installer Tip:

Always refer to your equipment's official parts manual before final installation to confirm the exact alignment and torque sequence.

Alternative / Cross-Reference Part Numbers: SVI BW-8561-0869 | Coats 85610869 | Distributor AM85610869

AMMCO and COATS are registered trademarks of The Coats Company. AEPN Inc. is not associated in any way with The Coats Company, Inc. Any names, symbols, numbers, and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers.
