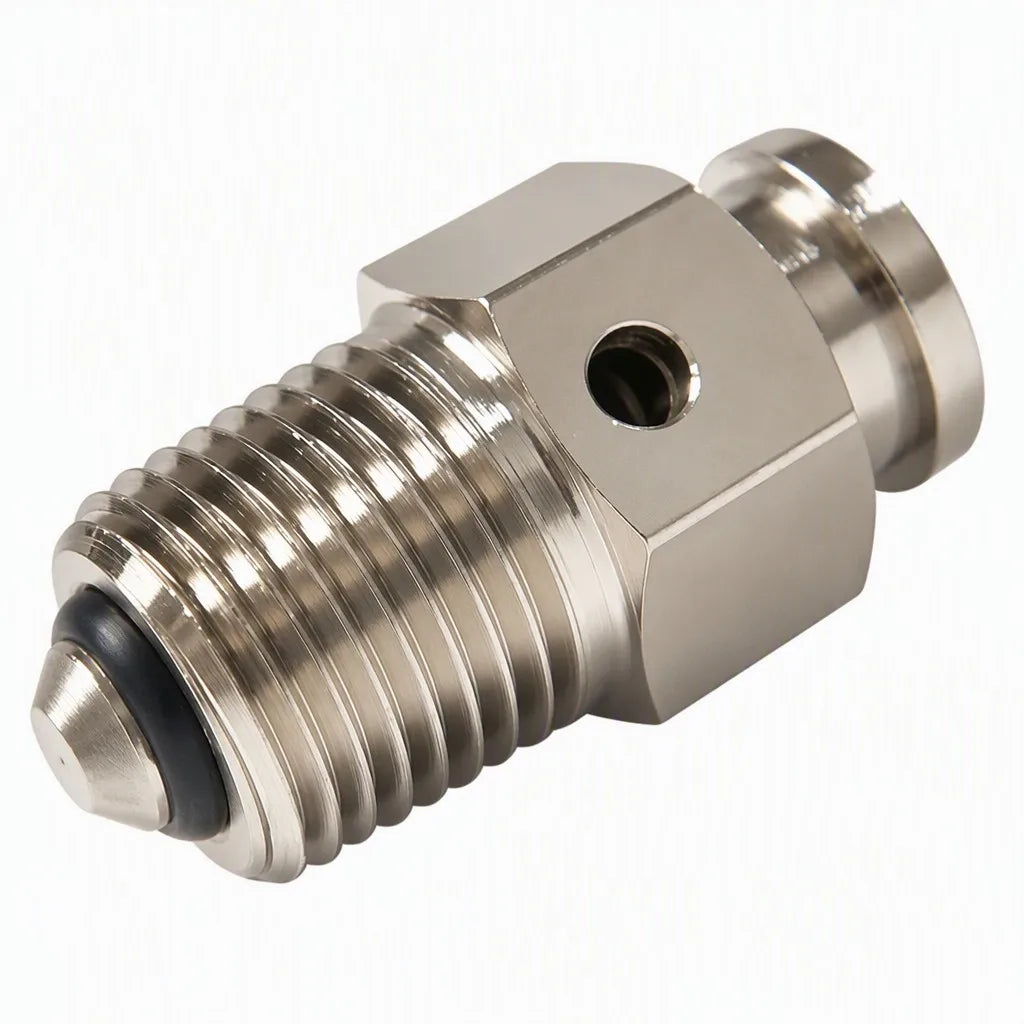

Release Valve Coats (AM8103737)

Release Valve For 8184675 And Some (Coats 8103737)

Price

  • $67.50
  • $72.90

Quantity

Shipping calculated at checkout.

Upgrade & Restore Your Tire Changer's Performance

The Release Valve For 8184675" And Some is a high-quality direct-replacement part designed for professional tire changers. Engineered to precise factory tolerances, it replaces original equipment part number 8103737 to keep your machinery in peak operating condition.

Timely replacement of worn mechanical hardware and consumables is critical to avoiding major component damage and reducing expensive bay downtime.

đź“‹ Factory Service Bulletin Guidance:

Update Date: October 2010
Subject: Oil Injector - Different Bleeder Valve

Oil injectors on production tire changers, beginning around serial number 1009107506, are now being equipped with a different bleeder valve. We are using a push button valve, part number 8103737. It is the same one used as the over inflation air release valve on center post tire changers with a 1/8” NPT thread. It requires a larger diameter threaded hole in the oil injector body. Therefore previous oil injector bleeder with a 1/4-28 thread and the new one are NOT interchangeable. The old bleeder is not available from Hennessy. If the local parts house does not have one, a short 1/4 -28 bolt with sealant will work in a pinch.

Update Date: August 2012
Subject: Oil Injector - Push Button Bleeder Leakage

We have been getting back some oil injectors that were good but had faulty push button bleeders. If hydraulic oil is seeping from the bleeder threads and down the injector wall, it is caused by a loose bleeder and/or the lack of thread sealant. The threads should be sealed and the bleeder tightened. Leakage from bleeder outlet hole indicates faulty bleeder Leakage from threa ds indicates loose or unsealed bleeder If the leakage is from the bleeder outlet hole, the bleeder is faulty and should be replaced. The bleeder part number is 8103737 and is in stock.

Machine Location:

This part is positioned in the primary mechanical assemblies or utility configurations of the tire changer.

Key Features & Specifications

  • Engineered Longevity: Built from durable materials designed to handle high-volume shop environments.
  • Direct Fitment: Designed to replace original hardware with no modifications or alignment adjustments required.
  • OEM Specifications: Fits perfectly to prevent mechanical play and preserve factory-spec alignment.

Complete Machine Compatibility

This universal replacement part is documented and verified to fit the following Coats® equipment models:

  • Coats 4050A Tire Changer
  • Coats 4070 Tire Changer
  • Coats 50/60/70/80/90 X-Model Series Tire Changer
  • Coats 5035 A/E Tire Changer
  • Coats 5040 A/E Tire Changer
  • Coats 85613210 Maxx Model
  • Coats APX Rim Clamp Tire Changer
  • Coats Gts50, Gts60, Gts70 And Gts-90 Rim Clamp Tire Changers
  • Coats Kit 85000839, Oil Injection Conversion
  • Coats RC-100 Tire Changer
  • Coats RC-45 A/E, RC-55 A/E Tire Changer
  • Coats Rc200Ex, Rc150Ex Tire Changer

Frequently Bought Together / Related Parts

These drawing-adjacent parts connect directly next to this part on your parts breakdown and assembly drawings:

🔧 Pro Installer Tip:

Always refer to your equipment's official parts manual before final installation to confirm the exact alignment and torque sequence.

Alternative / Cross-Reference Part Numbers: SVI BW-1637-37 | Coats 8103737 | Distributor AM8103737

AMMCO and COATS are registered trademarks of The Coats Company. AEPN Inc. is not associated in any way with The Coats Company, Inc. Any names, symbols, numbers, and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers.
