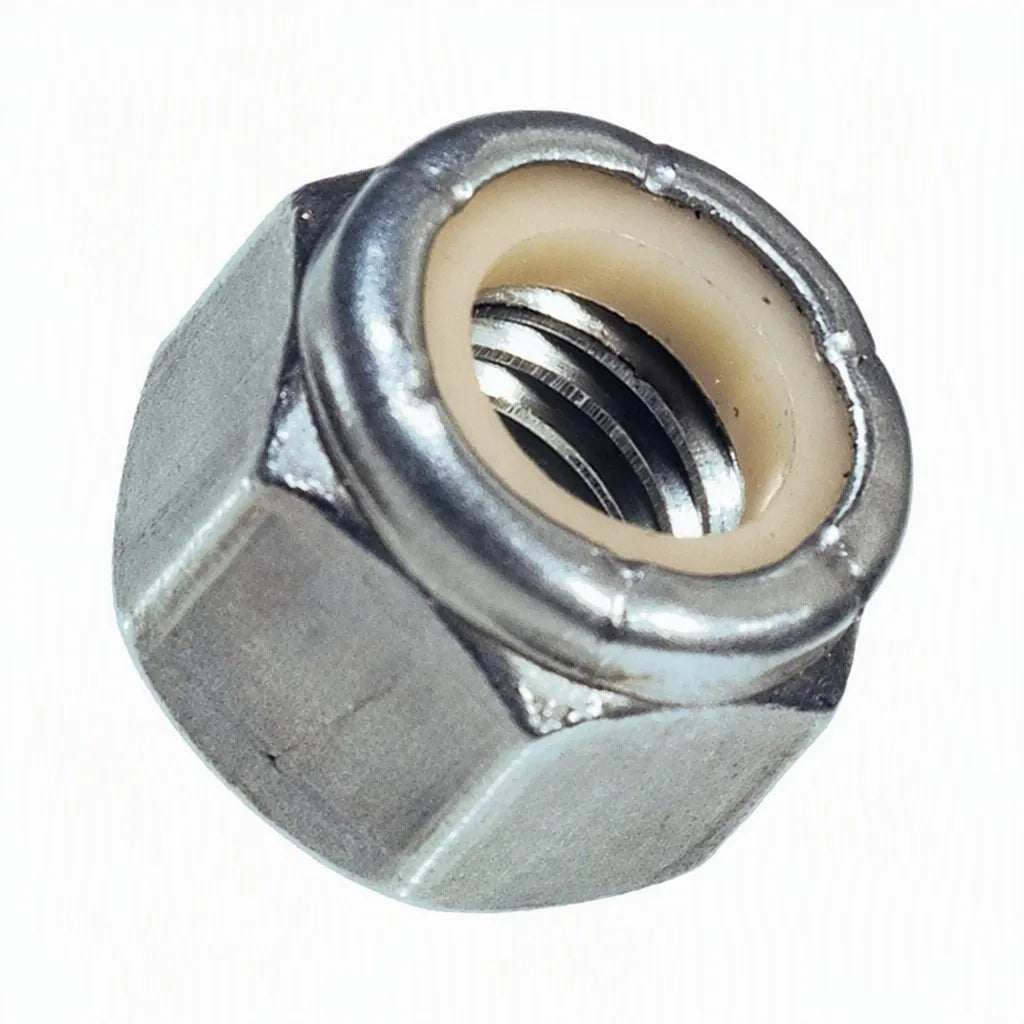

Coats Lock Nut-Nyl Insert 3/4-10 (AM8182016)

Nyl Insert 3"/4"-10" Lock Nut (Coats 8182016)

Price

  • $15.09
  • $16.30

Quantity

Shipping calculated at checkout.

Upgrade & Restore Your Tire Changer's Mechanical Rigidity

The Nyl Insert 3"/4"-10" Lock Nut is a heavy-duty, direct-replacement locknut/jam nut designed to secure critical pivot pins, cylinder rods, and mechanical linkages on professional tire changers.

Under continuous mechanical shock and intense shop vibrations, locking nuts can back off or strip, introducing play in foot pedals and table assemblies. This fine-thread replacement nut holds torque securely.

📋 Factory Service Bulletin Guidance:

Update Date: August 2013
Subject: Rim Clamp - 70H - BL Cylinder, Pivot, & Arm

Beginning in March of 2013, S/Ns 1303101566 & 1303101491, Discount Tire 70 Series Rim Clamp Tire Changers are equipped with a new bead loosener cylinder, a Heim joint instead of a pivot pin, and a slightly modified BL arm to accommodate the Heim joint. The same changes are going into effect on all standard production, hand control, 70 series models today beginning with S/N 1308100031. BL Arm Change: An interior welded support plate was moved slightly to allow clearance for the Heim joint. Note that the part number (8182002) for the BL Arm has not changed and that the new design is backward compatible but the old design is not forward compatible.

Update Date: November 2015
Subject: Changes in Heim Joint Hardware

Notice of change in hardware used to secure Heim Joint in the X model Tire Changers equipped with Heim Joints. Due to stack-up tolerance issues, Hennessy has decided to eliminate the two washers used in the assembly that attaches the heim joint to the BL arm. It is just now the screw, 3 spacers, and nylon locking nut. Original Design: Current Production: No action is required on your part but please be advised not submit requests for these washers as missing parts. Washer 8182457 No Longer Used Washer 8182457 - No Longer Used Bolt - 8182579 Nut - 8182016 SPACER 85608567, 2 each SPACER 85608566 1 each

Machine Location:

This fastener threads directly onto the foot pedal linkages, cylinder mounting pins, or vertical slide locking shafts inside the tire changer's cabinet.

Key Features & Specifications

  • Carbon Steel Forging: High-tensile carbon steel body built to resist thread stripping and mechanical shear.
  • Corrosion Shielding: Features a protective zinc coating to withstand compressor moisture and shop oil.
  • High Vibration Resistance: Designed to lock threads firmly in high-shock mechanical pivot points.

Complete Machine Compatibility

This universal replacement part is documented and verified to fit the following Coats® equipment models:

  • Coats 50/60/70/80/90 X-Model Series Tire Changer
  • Coats 5030 A/E Tire Changer
  • Coats 5035 A/E Tire Changer
  • Coats 5040 A/E Tire Changer
  • Coats 50Xx Series Tire Changer
  • Coats 6050 A/E/Ax/Ex Tire Changer
  • Coats 6060 Ax/Ex Tire Changer
  • Coats 6065 A/E/Ax/Ex Tire Changer
  • Coats 7Xxx Series Tire Changer (Prior 2010)
  • Coats 80C 90C Center Clamp Tire Changer (Revision 1)
  • Coats 80C 90C Center Clamp Tire Changer (Revision 2)
  • Coats 85613210 Maxx Model

Frequently Bought Together / Related Parts

These drawing-adjacent parts connect directly next to this part on your parts breakdown and assembly drawings:

🔧 Pro Installer Tip:

Clean the mating threads with a wire brush to remove shop grit before threading. Always tighten lock nuts with a backup wrench to prevent twisting neighboring linkages.

Alternative / Cross-Reference Part Numbers: SVI BW-1220-16 | Coats 8182016 | Distributor AM8182016

AMMCO and COATS are registered trademarks of The Coats Company. AEPN Inc. is not associated in any way with The Coats Company, Inc. Any names, symbols, numbers, and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers.
