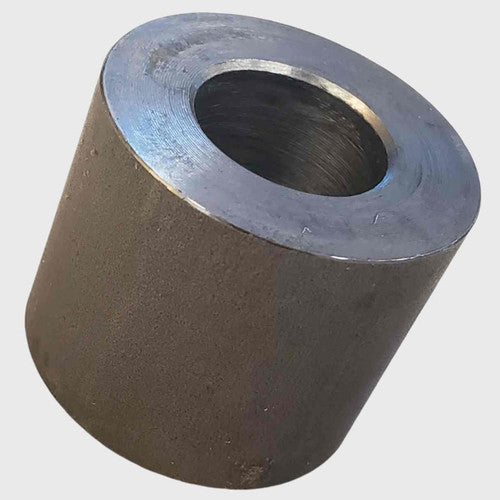

BL Cylinder Spacer Outer | The Coats Company 85608567

Bl Cylinder Spacer Outer (Coats 85608567)

Price

  • $28.75
  • $31.25

Quantity

Shipping calculated at checkout.

Upgrade & Restore Your Tire Changer's Pivot Assemblies

The Bl Cylinder Spacer Outer is a heavy-duty mechanical washer engineered to distribute clamping loads evenly and reduce surface friction on moving pivot points and structural joints of professional tire changers.

Regular maintenance and timely replacement of worn or scored washers are critical to preventing mechanical binding on main hinge pins and keeping assemblies pivoting smoothly.

đź“‹ Factory Service Bulletin Guidance:

Update Date: November 2015
Subject: Heim Joint Hardware Change

“1601 JP Hennessy Drive LaVergne, TN 37086 Page No. 1 of 1 Notice of change in hardware used to secure Heim Joint in the X model Tire Changers equipped with Heim Joints. Due to stack-up tolerance issues, Hennessy has decided to eliminate the two washers used in the assembly that attaches the heim joint to the BL arm. It is just now the screw, 3 spacers, and nylon locking nut.”

Machine Location:

This washer is located directly on vertical hinge pins, swing arm pivot joints, or bead breaker arm cylinders.

Key Features & Specifications

  • Hardened Steel Body: Stamped from high-strength steel to resist flattening, warping, or scoring under heavy loads.
  • Optimal Load Distribution: Prevents structural fasteners from wearing into softer castings or aluminum blocks.
  • Rust Resistance: Zinc-plated finish provides defense against shop humidity and compressor condensation.

Complete Machine Compatibility

This universal replacement part is documented and verified to fit the following Coats® equipment models:

  • Coats 50/60/70/80/90 X-Model Series Tire Changer
  • Coats 80C 90C Center Clamp Tire Changer (Revision 1)
  • Coats 80C 90C Center Clamp Tire Changer (Revision 2)
  • Coats 85613210 Maxx Model
  • Coats APX Rim Clamp Tire Changer
  • Coats Dt Maxx
  • Coats Gts50, Gts60, Gts70 And Gts-90 Rim Clamp Tire Changers

Frequently Bought Together / Related Parts

These drawing-adjacent parts connect directly next to this part on your parts breakdown and assembly drawings:

🔧 Pro Installer Tip:

For moving pivot shafts, apply a thin layer of grease to both faces of the washer during installation to eliminate friction.

Alternative / Cross-Reference Part Numbers: SVI BW-2585-67 | Coats 85608567 | Distributor AM85608567

AMMCO and COATS are registered trademarks of The Coats Company. AEPN Inc. is not associated in any way with The Coats Company, Inc. Any names, symbols, numbers, and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers.
