Product description

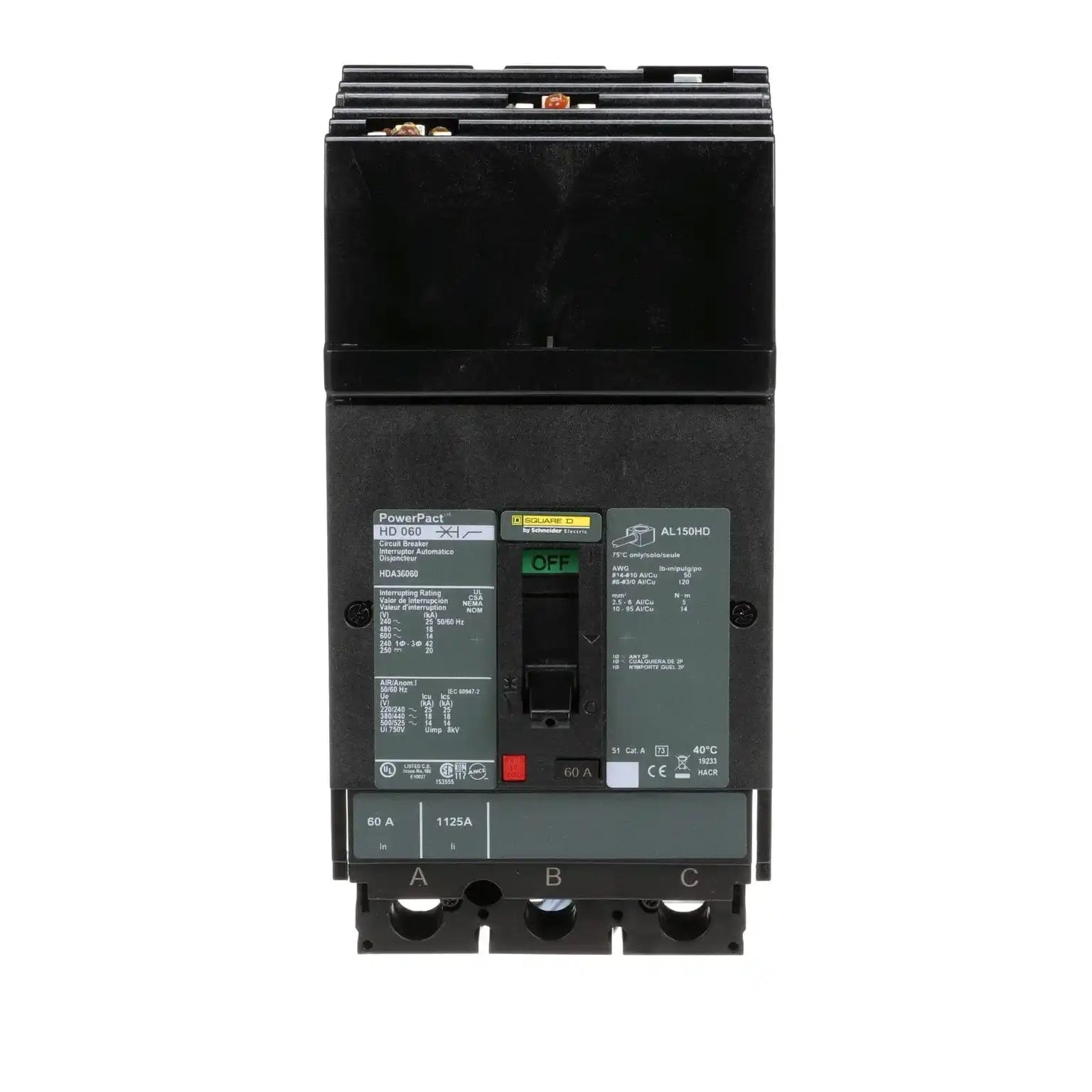

The Square D HDA36060 is a genuine OEM PowerPact H-Frame molded case circuit breaker rated 60A, 3-pole, 600V with an I-Line style plug-in connection for panelboard and switchboard applications. Featuring a thermal magnetic trip unit with long-time and instantaneous trip functions, this breaker provides 18kA interrupting capacity at 480V and is UL listed and CSA certified for reliable overcurrent protection. Designed for I-Line bracket mounting with non-interchangeable trip and suitable for reverse-fed applications, the HDA36060 is a direct replacement for aging or damaged breakers in commercial and industrial I-Line panelboards.

Product highlights

• 60A 3-Pole Rating: Delivers reliable overcurrent protection at 600V for I-Line panelboards.
• I-Line Plug-In Connection: Simplifies installation into standard I-Line bracket mounting systems.
• 18kA Interrupting Capacity: Rated at 480V for dependable short-circuit protection.
• Thermal Magnetic Trip: Long-time and instantaneous trip functions for accurate fault response.
• UL Listed and CSA Certified: Meets industry standards for safe, code-compliant installation.

Specs

• Manufacturer: Square D (Schneider Electric)
• Manufacturer Part Number: HDA36060
• Component Type: Molded Case Circuit Breaker
• Amperage: 60A
• Poles: 3
• Voltage: 600V
• Interrupting Rating: 18kA at 480V
• Connection Type: I-Line Plug-In
• Frame Type: H-Frame
• Trip Unit: Thermal Magnetic, Long-Time and Instantaneous
• Dimensions: 9.73in H x 4.48in W x 4.8in D
• Weight: 2.48 lbs

Direct replacement models

HDA36060

You will receive the same product or an OEM-Equivalent that meets the highest standard of the OEM with warranty that will be a direct-fit. Designed in the USA with superior quality to the OEM.
