Product description

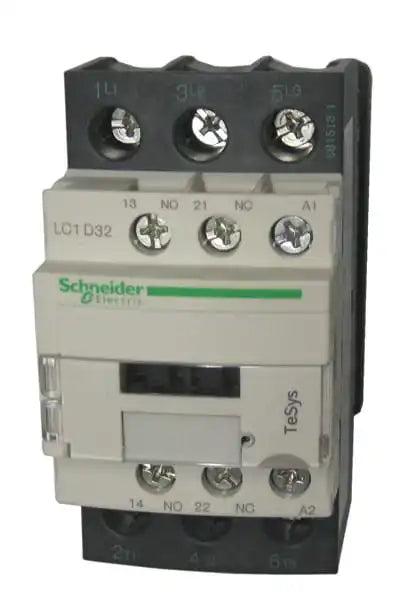

The Schneider Electric LC1D32R7 is a genuine OEM TeSys Deca IEC contactor rated 32A AC-3 (20HP at 480VAC), designed for motor control applications up to 100kA SCCR. This 3-pole, 3NO nonreversing contactor operates on a 440V 50/60Hz AC coil and features built-in auxiliary contacts, IP20 finger-safe screw clamp terminals, and standard 35mm DIN rail or panel mounting. Engineered for perfect integration into industrial control systems, the LC1D32R7 provides reliable, long-life switching for motor starters and is a direct OEM replacement for maintaining code-compliant motor control circuits.

Product highlights

• 32A AC-3 Rating: Delivers 20HP motor control capability at 480VAC.
• 440V AC Coil: 50/60Hz coil voltage for standard industrial control circuits.
• 3-Pole, 3NO Configuration: Nonreversing contactor for motor starter applications.
• Screw Clamp Terminals: IP20 finger-safe terminals for safe, reliable wiring.
• DIN Rail or Panel Mounting: Flexible installation on standard 35mm DIN rail or panel mount.

Specs

• Manufacturer: Schneider Electric
• Manufacturer Part Number: LC1D32R7
• Component Type: IEC Contactor
• Series: TeSys Deca
• Amperage: 32A AC-3 (50A AC-1)
• Poles: 3 (3NO)
• Coil Voltage: 440V AC, 50/60Hz
• Horsepower: 10HP at 230V, 20HP at 460V
• SCCR Rating: Up to 100kA
• Terminals: Screw Clamp
• Mounting: 35mm DIN Rail or Panel
• Width: 45mm

Direct replacement models

LC1D32R7

You will receive the same product or an OEM-Equivalent that meets the highest standard of the OEM with warranty that will be a direct-fit. Designed in the USA with superior quality to the OEM.
