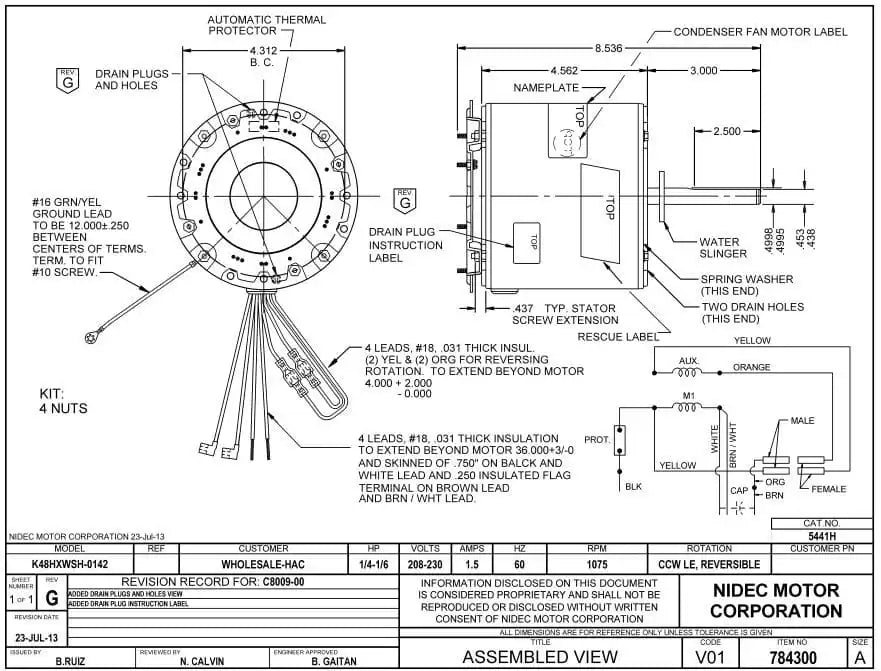

Product description

The Nidec 5441H is a genuine OEM permanent split capacitor condenser fan motor rated 1/4 HP, single-speed, engineered for outside air conditioning condenser fan applications. This 5.0in diameter motor runs at 1075 RPM on 208-230V single phase power and features a Totally Enclosed Air Over (TEAO) enclosure, automatic overload protection, and ball bearing construction rated for continuous duty in ambient temperatures up to 70 degrees C. A stud mount design compatible with 4.3in, 4.4in, and 4.6in bolt circles allows flexible installation, and reversible rotation with 36in leads simplifies field wiring. A 5 MFD/370V run capacitor is required for operation.

Product highlights

• Reliable 1/4 HP Motor: Single-speed operation at 1075 RPM on 208-230V single phase power.
• TEAO Enclosure: Totally Enclosed Air Over design rated for high-ambient HVAC condenser environments.
• Ball Bearing Construction: Supports continuous duty operation and long service life.
• Versatile Stud Mount: Compatible with 4.3in, 4.4in, and 4.6in bolt circle patterns.
• Reversible Rotation: 36in leads and reversible wiring simplify field installation.

Specs

• Manufacturer: Nidec (US Motors)
• Manufacturer Part Number: 5441H
• Component Type: Condenser Fan Motor
• Horsepower: 1/4 HP
• Speed: 1075 RPM, 1-Speed
• Voltage: 208-230V, Single Phase
• Amperage: 1.5 Amps
• Bearings: Ball Bearings
• Insulation Class: Class B, 70 degrees C Ambient
• Shaft: 1/2in Diameter x 3.0in Length
• Mounting: Stud, 4.3in/4.4in/4.6in Bolt Circles
• Capacitor Required: 5 MFD/370V (sold separately)

Direct replacement models

D7908, P257-8330, HC37GE233, 3323, ORM5484BF, K048WSH0142012B, K48HXGCD-4203

You will receive the same product or an OEM-Equivalent that meets the highest standard of the OEM with warranty that will be a direct-fit. Designed in the USA with superior quality to the OEM.
