Product description

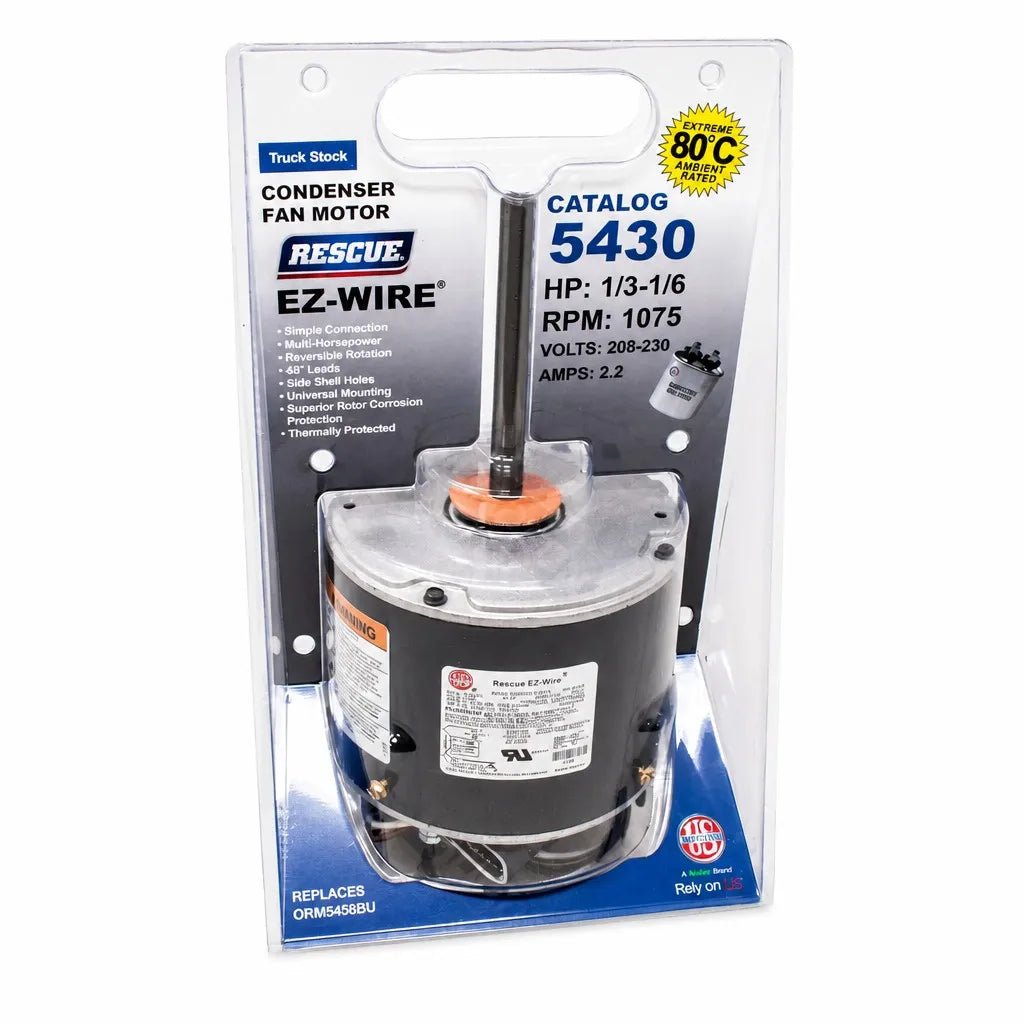

The Nidec 5430 RESCUE EZ-Wire is a genuine OEM dual-horsepower (1/3-1/6 HP) permanent split capacitor condenser fan motor engineered for high-reliability HVAC condensing unit applications. This 5.6in diameter motor runs at 1075 RPM on 208-230V single phase power and features EZ-Wire color-coded leads for simplified field connections, along with a Totally Enclosed Air Over (TEAO) enclosure and ball bearing construction rated for continuous duty and extended service life. The dual-HP rating consolidates truck stock inventory across a wide range of 48-frame condenser fan applications, and reversible rotation with 48in leads simplifies installation.

Product highlights

• Dual-HP Design: 1/3-1/6 HP rating consolidates inventory across 48-frame condenser fan applications.
• EZ-Wire Color-Coded Leads: Pre-labeled wiring for fast, accurate field connections.
• TEAO Enclosure: Totally Enclosed Air Over design rated for extreme 80 degrees C ambient conditions.
• Ball Bearing Construction: Supports continuous duty operation and long service life.
• Reversible Rotation: 48in leads and reversible wiring simplify field installation.

Specs

• Manufacturer: Nidec (US Motors)
• Manufacturer Part Number: 5430
• Component Type: Condenser Fan Motor
• Horsepower: 1/3-1/6 HP
• Speed: 1075 RPM, 1-Speed
• Voltage: 208-230V, Single Phase
• Amperage: 2.2 Amps
• Bearings: Ball Bearings
• Enclosure: TEAO, 80 degrees C Ambient Rated
• Frame: 48Y
• Mounting: Stud/Belly Band
• Capacitor Required: 7.5 MFD/440V (sold separately)

Direct replacement models

5462, 10465, 3465, P257-E5462, 51-23053-11, S1-FHM3465, 51-23055-11, ORM5458BU

You will receive the same product or an OEM-Equivalent that meets the highest standard of the OEM with warranty that will be a direct-fit. Designed in the USA with superior quality to the OEM.
