Product description

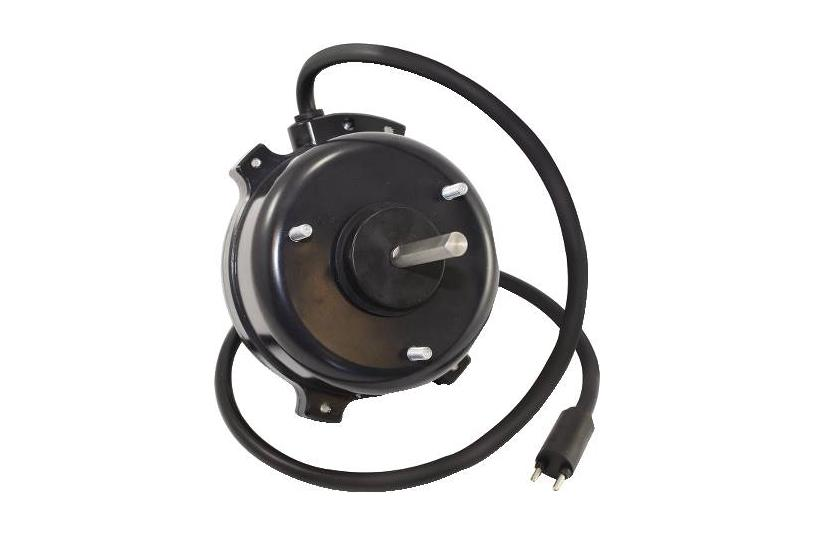

The Nidec 3685368 (US Motors S59-628 / EC5407E) is a genuine OEM RESCUE ECM walk-in evaporator motor engineered to drive evaporator fan blades in walk-in coolers and freezers. This dual-voltage 115-230V motor operates without any connection change required, adjusting output between 1/25 HP and 1/15 HP with a corresponding RPM range of 1550-1625. The electronically commutated motor (ECM) design delivers up to 70% efficiency, significantly reducing energy consumption compared to older shaded-pole and PSC motors. Rated IP67, this motor is dust-tight with all-angle moisture protection and can withstand the demanding low-temperature, high-humidity environment inside a walk-in refrigeration unit, with an operating range of -40 degrees C to 55 degrees C. The stainless steel shaft and robust ball bearing system provide long service life, while the low-profile body style and standard 10-32 thread 3-stud mounting pattern (120 degrees apart) allow for a direct fit into existing evaporator fan housings.

Product highlights

• Dual-Voltage ECM Design: Runs on 115-230V with no connection change required, simplifying replacement across different equipment.
• Up to 70% Efficiency: Electronically commutated motor technology cuts energy use versus standard evaporator motors.
• IP67 Rated: Dust-tight with all-angle moisture protection for demanding walk-in cooler and freezer environments.
• Wide Operating Range: Rated from -40 degrees C to 55 degrees C ambient for reliable cold-storage performance.
• Robust Ball Bearing System: Stainless steel shaft and ball bearings support long-term, low-maintenance operation.

Specs

• Manufacturer: Nidec (US Motors)
• Manufacturer Part Number: 3685368 (S59-628 / EC5407E)
• Component Type: ECM Walk-In Evaporator Motor
• Voltage: 115-230 VAC (Dual Voltage)
• Horsepower: 1/25-1/15 HP (30-50 Watts)
• RPM: 1550-1625 RPM
• Frequency: 50/60 Hz
• Amperage: 0.4-0.72 Amps
• Phase: Single-Phase
• Motor Type: Electronically Commutated Motor (ECM), TEAO
• Enclosure Rating: IP67
• Bearings: Ball Bearings
• Mounting: 3-Stud, 120 Degrees Apart, 10-32 Thread
• Rotation: CCWOSE (Counterclockwise Opposite Shaft End)

Direct replacement models

Nidec 3685368, S59-628, EC5407E, 25318001, 25317901, 25317901S, 25318001S

You will receive the same product or an OEM-Equivalent that meets the highest standard of the OEM with warranty that will be a direct-fit. Designed in the USA with superior quality to the OEM.
