Product description

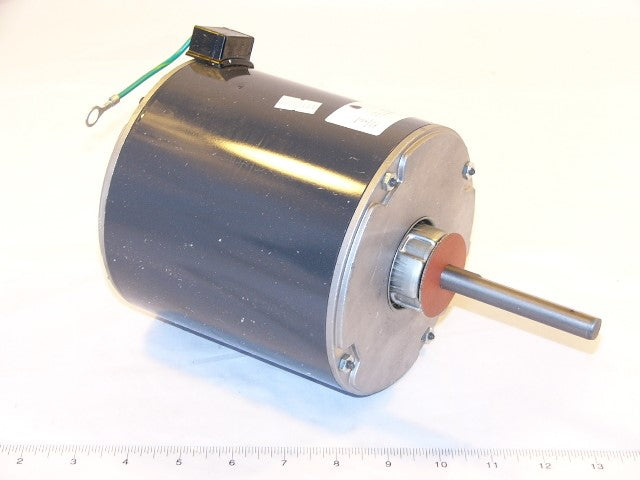

The Lennox K055BPH6161011J is a genuine OEM condenser fan motor engineered to drive the outdoor condenser fan on commercial and residential HVAC condensing units. Built by Nidec Motor Corporation for Lennox, this 1/2 HP motor operates on 460V single-phase power and delivers a steady 1075 RPM to keep refrigerant properly cooled as it moves through the condenser coil. The permanent split capacitor (PSC) design provides reliable, energy-efficient starting torque, while the sealed ball bearings support quiet, long-lasting rotation through continuous seasonal duty cycles. Housed in a NEMA 48 frame with an automatic-reset overload protector, this motor is built to handle the heat and vibration of outdoor condenser service. The K055BPH6161011J restores proper airflow across the condenser coil, which is essential for correct head pressure and overall system cooling capacity.

Product highlights

• 1/2 HP Condenser Duty: Delivers the airflow needed to keep refrigerant properly condensed in commercial and residential systems.
• 460V Single-Phase Power: Matches original equipment electrical specifications for a direct, drop-in replacement.
• Sealed Ball Bearings: Supports quiet, low-maintenance operation across long outdoor duty cycles.
• Automatic-Reset Overload Protection: Built-in NEMA 48 frame protection guards against overheating.
• Genuine OEM Fit: Manufactured by Nidec for Lennox, ensuring correct mounting, shaft, and electrical compatibility.

Specs

• Manufacturer: Lennox
• Manufacturer Part Number: K055BPH6161011J
• Component Type: Condenser Fan Motor
• Voltage: 460 VAC
• Horsepower: 1/2 HP
• RPM: 1075 RPM
• Frequency: 60 Hz
• Amperage: 1.2 Amps
• Phase: Single-Phase
• Motor Type: Permanent Split Capacitor (PSC)
• Frame Size: 48
• Bearings: Sealed Ball Bearings
• Insulation Class: Class B
• Mounting: Vertical
• Rotation: Counterclockwise (Lead End)
• Speeds: 1-Speed

Direct replacement models

Lennox K055BPH6161011J, Lennox 27J07, Lennox 27J0701, Nidec 1128

You will receive the same product or an OEM-Equivalent that meets the highest standard of the OEM with warranty that will be a direct-fit. Designed in the USA with superior quality to the OEM.
