Product description

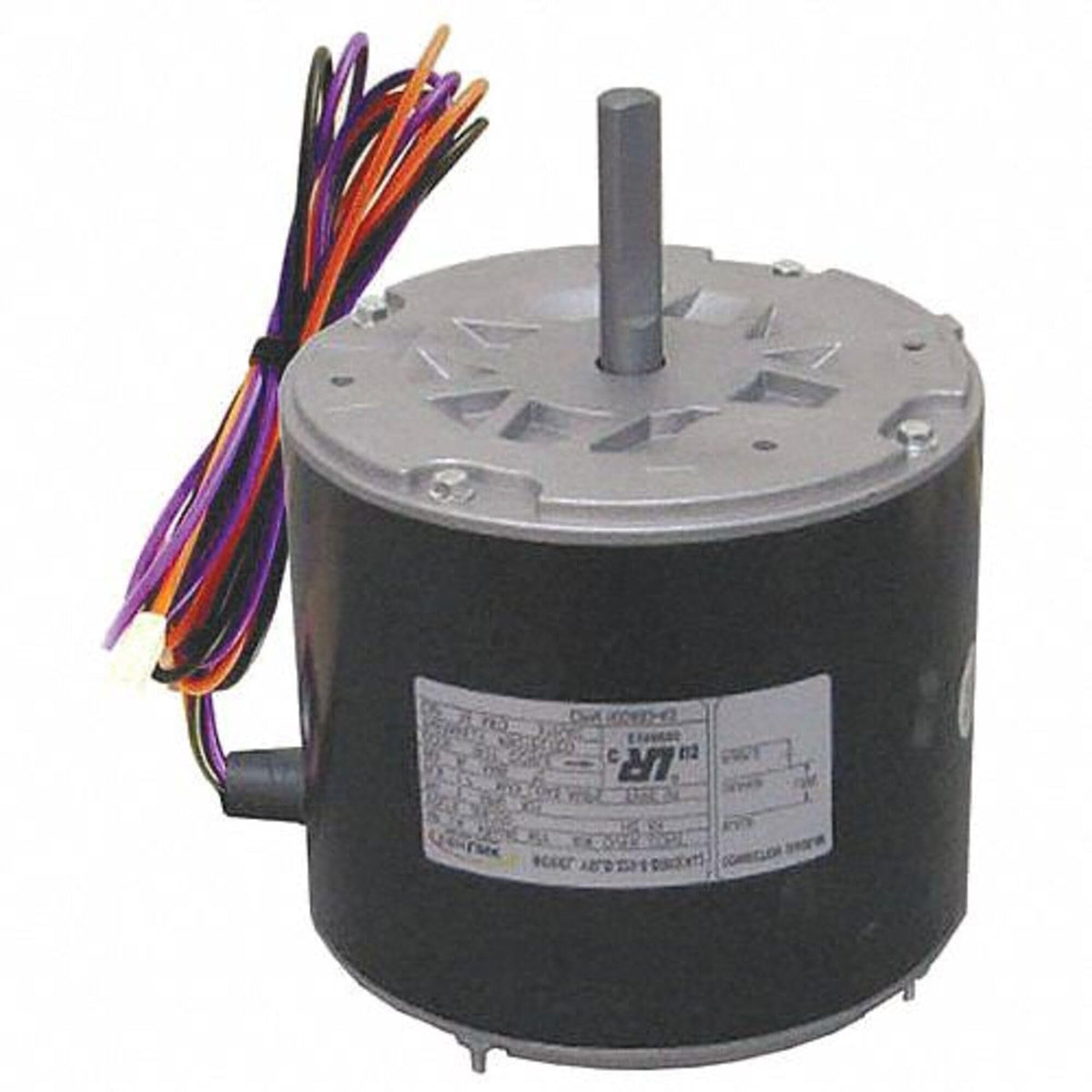

Lennox 12Y65 is a condenser fan motor rated 1/4 HP, 208-230V, 1-phase, 60Hz, 825 RPM, PSC, CCW rotation, ball bearing, NEMA 48 frame, Insulation Class B -- for commercial and residential condensing unit applications.

Specs

• Component Type: Condenser Fan Motor
• Horsepower: 1/4 HP
• Voltage: 208-230V
• Phase: 1
• Frequency: 60 Hz
• Speed: 825 RPM
• Motor Type: PSC
• Rotation: CCW
• Frame: NEMA 48
• Current: 1.7A
• Insulation Class: B
• Manufacturer: Lennox
• Manufacturer Part Number: 12Y65

Cross-Reference

Lennox 12Y65 (100483-43, Interlink equivalent).
