Product description

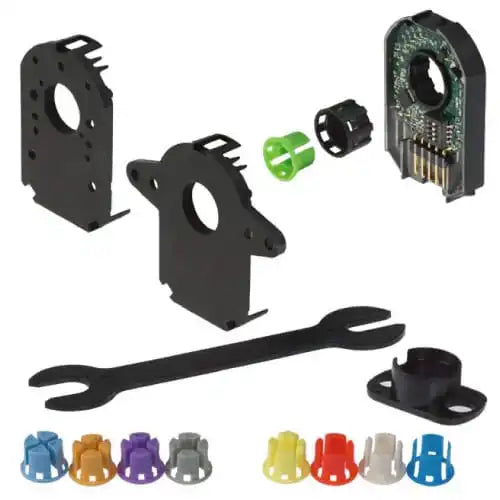

The Coats 85612673 is a genuine OEM incremental rotary encoder, based on the CUI AMT102-V modular kit encoder, used to provide precise rotational position and speed feedback on the Coats 1600 Direct Drive Wheel Balancer (Post 8/22 - 10/24 production). This capacitive-technology encoder mounts directly to the balancer's spindle motor shaft and communicates wheel rotation data to the balancer's control system, enabling accurate imbalance detection and measurement. Featuring a dipswitch-configurable resolution of up to 2048 PPR, a durable metal housing, and 5 VDC push-pull (totem) output, this encoder is a direct OEM replacement for restoring accurate wheel position feedback and balancing performance on compatible Coats 1600 wheel balancers.

Product highlights

• Genuine OEM Encoder: Built to Coats factory specifications for the 1600 Wheel Balancer (Post 8/22-10/24).
• CUI AMT102-V Modular Design: Capacitive incremental encoder technology for reliable rotational feedback.
• Dipswitch Configurable: Up to 2048 PPR resolution, no configuration software required.
• Durable Metal Housing: IP20 rated construction with hollow shaft for direct spindle mounting.
• 5 VDC Push-Pull Output: Delivers accurate quadrature signal for precise wheel position sensing.

Specs

• Manufacturer: Coats (CUI Inc / Same Sky)
• Manufacturer Part Number: 85612673 (CUI AMT102-V)
• Component Type: Incremental Rotary Encoder
• Feedback Type: Incremental (Quadrature)
• Voltage Rating: 5 VDC
• Output Type: Push-Pull (Totem)
• Resolution: Up to 2048 PPR (Dipswitch Configurable)
• Shaft Type: Hollow, 2mm-8mm Configurable
• Housing Material: Metal
• IP Rating: IP20
• Compatible Model: Coats 1600 Direct Drive Wheel Balancer (Post 8/22 - 10/24 Production)

Direct replacement models

85612673, CUI AMT102-V

You will receive the same product or an OEM-Equivalent that meets the highest standard of the OEM with warranty that will be a direct-fit. Designed in the USA with superior quality to the OEM.
