Product description

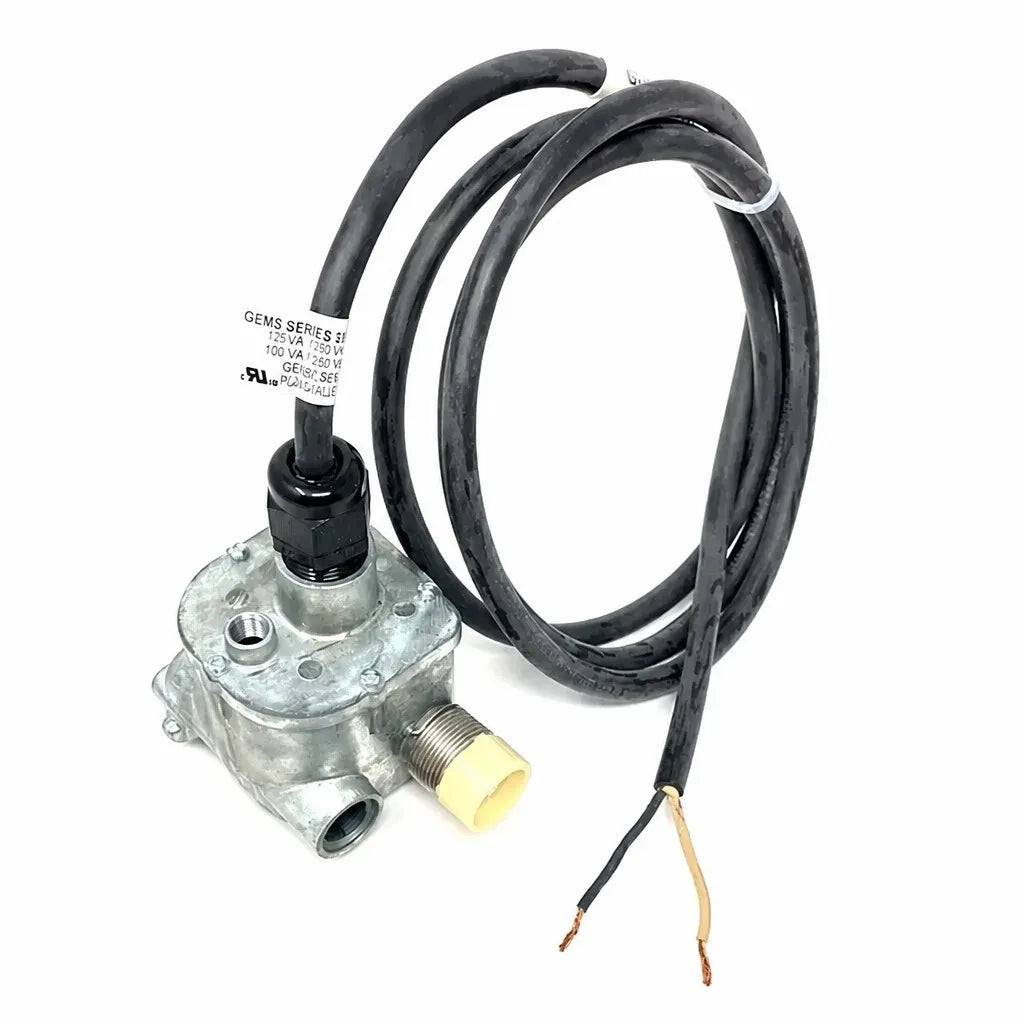

The Champion TEN008741 is a genuine OEM low oil level switch designed for Champion R-Series air compressor pumps, including R15B, R30D, R40A, R70A, and VR10-12 models. This new-style switch continuously monitors the oil level inside the compressor pump crankcase, and if the oil drops below the minimum safe operating level, its internal reed switch opens to interrupt power to the motor circuit, automatically shutting the compressor down to prevent pump seizure and catastrophic bearing or cylinder damage from running dry. Rated NEMA 1 for standard indoor shop environments, the switch is supplied with an attached cord for direct wiring into the compressor's control circuit. This switch does not include mounting fittings and is intended as a like-for-like replacement of the low oil switch component only.

Product highlights

• Automatic Low-Oil Shutdown: Interrupts motor power when oil drops below the safe operating level, protecting the pump from dry-run damage.
• New-Style OEM Design: Updated switch design for Champion R-Series pump applications.
• NEMA 1 Rated: Suitable for standard indoor compressor installations.
• Direct Wire Cord: Attached cord simplifies integration into the existing control circuit.
• Wide Pump Compatibility: Fits R15B, R30D, R40A, R70A, and VR10-12 Champion compressor pumps.

Specs

• Manufacturer: Champion
• Manufacturer Part Number: TEN008741
• Component Type: Low Oil Level Switch
• Enclosure Rating: NEMA 1
• Switch Style: New Style, Reed Switch
• Compatible Pumps: R15B, R30D, R40A, R70A, VR10-12
• Included: Switch with Attached Cord (fittings not included)

Direct replacement models

Champion TEN008741, for R15B, R30D, R40A, R70A, VR10-12 pumps

You will receive the same product or an OEM-Equivalent that meets the highest standard of the OEM with warranty that will be a direct-fit. Designed in the USA with superior quality to the OEM.
