Product description

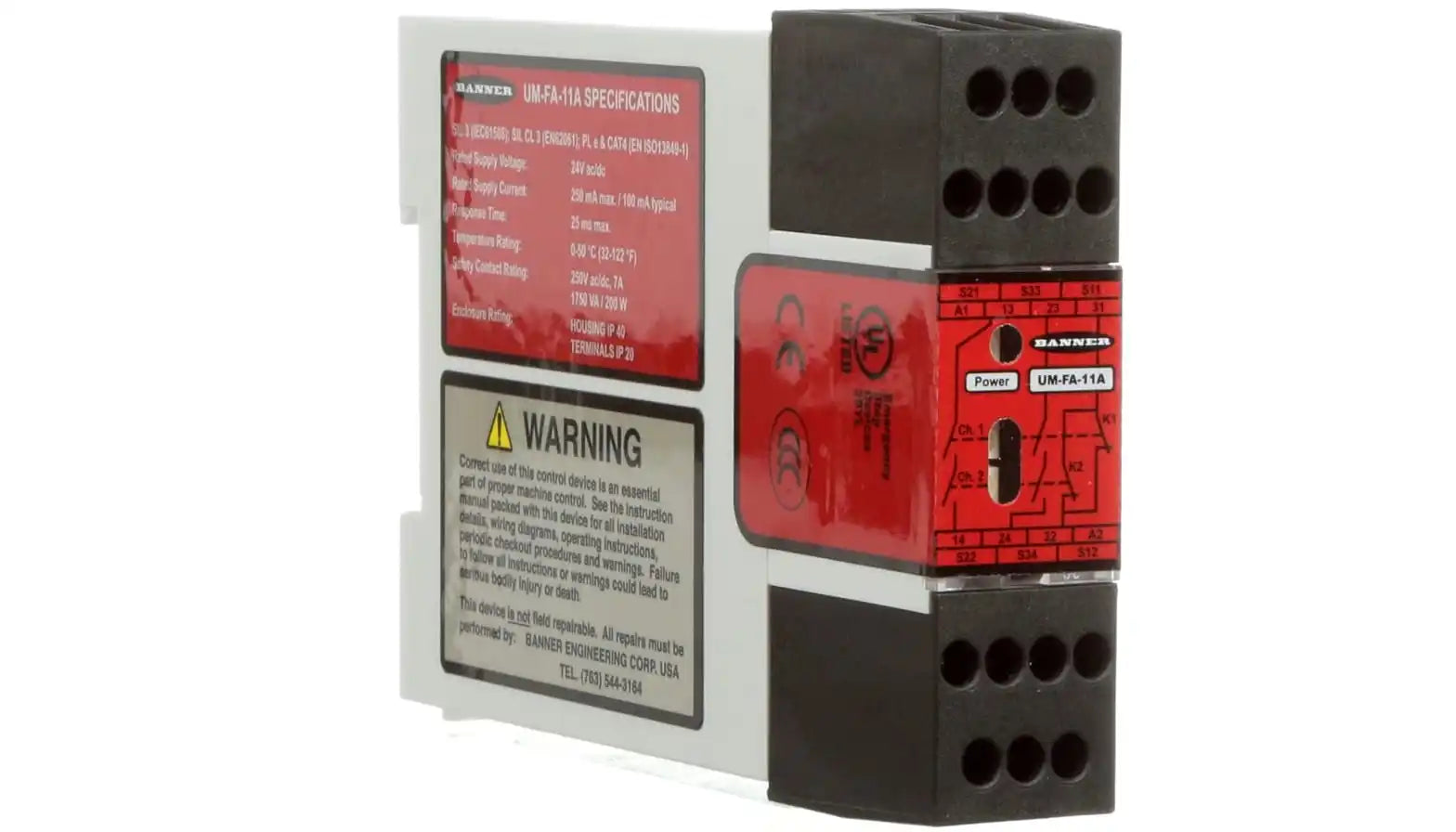

The Banner UM-FA-11A is a genuine OEM Universal Input Safety Relay Module designed to monitor a wide variety of safety and non-safety input devices, including safety light curtains, safety laser scanners, positive-opening safety switches for guard interlocking, and emergency-stop devices such as palm buttons and rope/cable pulls. Operating on 24V ac/dc supply voltage, this self-checking safety relay accepts single or dual-channel inputs from solid-state (PNP) or dry-contact devices and provides two normally open (N.O.) safety output channels rated 7A plus one normally closed (N.C.) auxiliary output for connection to control-reliable power interrupt circuits. Featuring removable 22.5mm screw terminals, automatic or monitored manual reset, and a design that complies with Category 4 PLe (ISO 13849-1), SIL 3 (IEC 61508/IEC 62061), and Control Reliable (ANSI B11.19) standards, the UM-FA-11A is a direct OEM replacement for restoring reliable machine safety interlock and monitoring function.

Product highlights

• Universal Safety Input Module: Monitors light curtains, scanners, e-stops, and interlock switches on a single device.
• 24V AC/DC Supply Voltage: Self-checking circuitry with auto or monitored manual reset.
• 2 NO Safety Outputs, 7A: Plus 1 NC auxiliary output for control-reliable power interrupt circuits.
• Category 4 PLe, SIL 3 Rated: Complies with ISO 13849-1, IEC 61508/62061, and ANSI B11.19 standards.
• Removable Screw Terminals: 22.5mm width terminal block simplifies installation and service.

Specs

• Manufacturer: Banner Engineering
• Manufacturer Part Number: UM-FA-11A (Item/Catalog #81228)
• Component Type: Universal Input Safety Relay Module
• Supply Voltage: 24V ac/dc +/- 10%
• Safety Input: 1 Dual/Single Channel (2 OSSD, 2 NC, or 1 NC)
• Safety Output: 2 NO, 7A
• Auxiliary Output: 1 NC, 7A
• Response Time: 25ms (typical)
• Recovery Time: 250ms
• Terminal Block: Removable, 22.5mm Width
• Safety Rating: PL e, Category 4, SIL 3
• Mechanical Life: 20 Million Operations
• Dimensions: 84mm H x 22.5mm W x 118mm D
• IP Rating: IP20

Direct replacement models

81228, UM-FA-11A

You will receive the same product or an OEM-Equivalent that meets the highest standard of the OEM with warranty that will be a direct-fit. Designed in the USA with superior quality to the OEM.
