Upgrade & Restore Your Wheel Balancer's Structural Rigidity

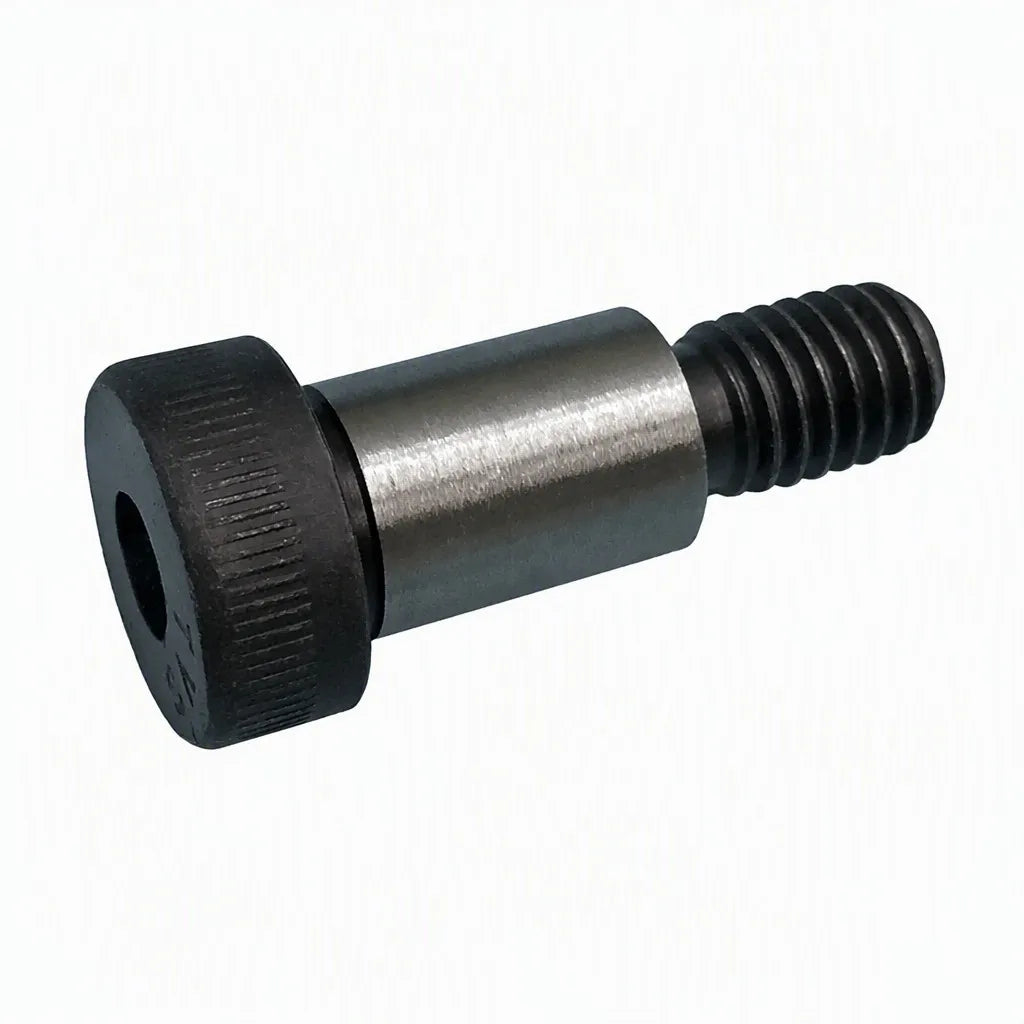

The Shoulder Bolt To Hold Down Motor On Balancer is a high-tensile structural fastener designed to secure motor brackets, piezo sensor plates, or main bearing housings inside professional wheel balancers.

Vibrations from balancing heavy wheels can place immense shear force on structural bolts, causing standard hardware to stretch, thread-strip, or loosen. This high-grade bolt ensures rigid mechanical assembly.

Machine Location:

This fastener is used in the balancer motor mounting plate, bearing housing flange, or protective hood switch assembly.

Key Features & Specifications

• Grade 5 / Grade 8 Steel: High-yield structural steel engineered to absorb extreme vibrational shear stress.
• Corrosion Inhibiting Plating: Protected with a thick zinc-plated finish to resist garage chemicals and humidity.
• Rolled Precision Threads: Rolled threads provide maximum engagement and lock holding torque permanently.

Complete Machine Compatibility

This universal replacement part is documented and verified to fit the following Coats® equipment models:

• Coats 1000 / 1000D Balancer
• Coats 1100 Series Balancer
• Coats 1250 Series Balancer
• Coats 1300, 1400, 1500 And 1600 Wheel Balancer
• Coats 6450 3D
• Coats 85613512 E900
• Coats Vero Series Wheel Balancer

Frequently Bought Together / Related Parts

These drawing-adjacent parts connect directly next to this part on your parts breakdown and assembly drawings:

• Coats Jumper, Assembly (Part # 8112224)
• Coats 1/2" Flat Washer (Part # 8301121)
• Coats Cradle Assembly (Part # 8110430)
• Coats Mount Block-12Mm Dia Laser (Part # 85610271)
• Coats Hanger, Caliper (Part # 8111021)
• Coats Cone, Small (Part # 8110410)
• Coats Extension, 40Mm Shaft (Part # 85009204)
• Coats Decals, Weight Tray Bins (Part # 8314005)
• Coats "A" Pulley (Part # 8110915)
• Coats 18" Nylon Insert Lock Nut 5/16" (Part # 8181183)

Alternative / Cross-Reference Part Numbers: SVI BW-8560-9427 | Coats 85609427 | Distributor AM85609427
