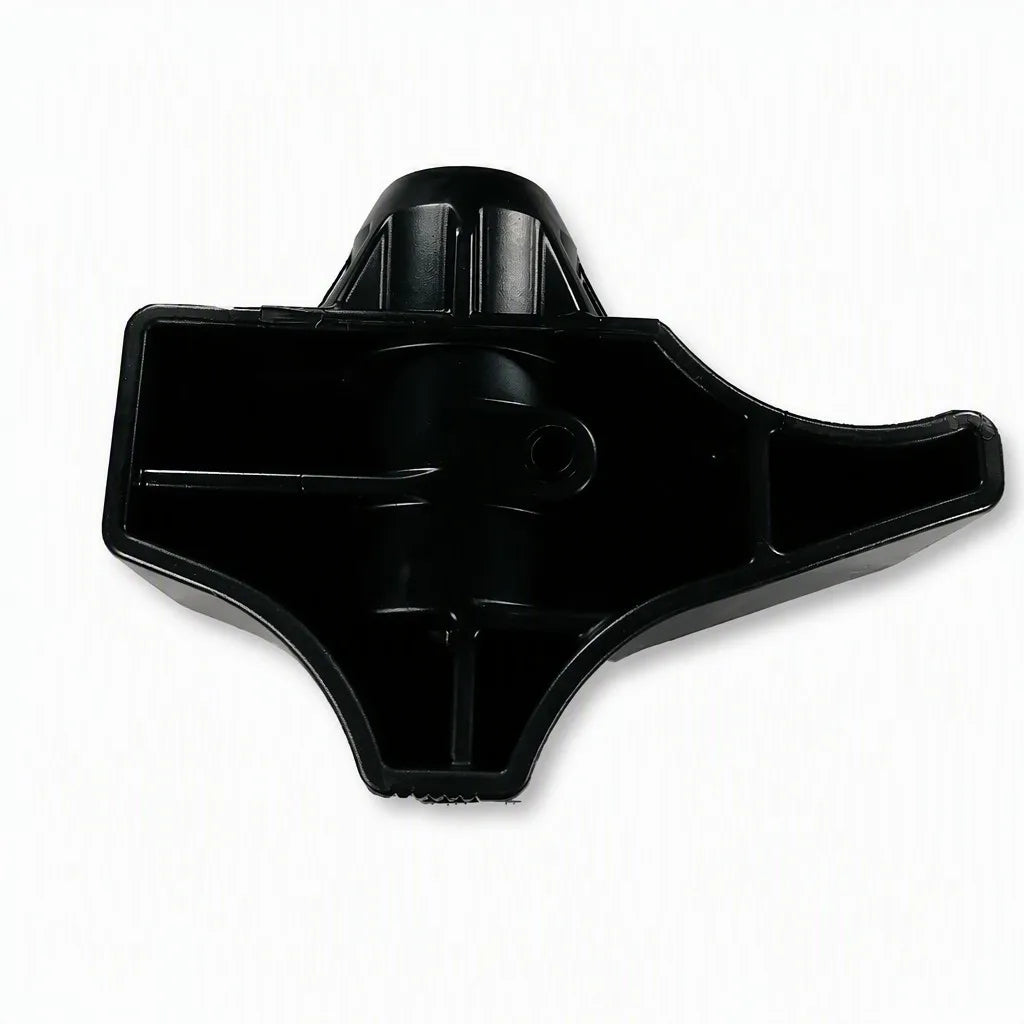

Foot for Robo Arm Coats (AM85009167)

Plastic Foot Hold Down (Coats 85009167)

Price

  • $103.22
  • $111.48

Quantity

Shipping calculated at checkout.

Upgrade & Restore Your Tire Changer's Robo-Arm Helper Cylinder

The New-Design Robo-Arm Plastic Foot Hold Down (Coats 85009167) is a heavy-duty, direct-replacement assist foot engineered specifically for high-volume tire operations. It delivers superior downward bead-pressing leverage without flexing or slipping off the tire sidewall.

Regular maintenance and timely replacement of worn assist arm feet are critical to preventing costly wheel flange scratches, protecting your technician's hands, and speeding up the mounting of stiff-sidewall run-flat and low-profile tires.

📋 Factory Design Revision:

Release Date: February 2009
Supersedes: Plastic Hold Down Foot (Part # 8183641)
Alternative/Package Numbers: 8500916701 | SVI BW-2591-67

This New Design Foot (Part # 85009167 / 8500916701) became standard production equipment on COATS 70XX Series Rim Clamp tire changers beginning with serial number 0902103064, completely replacing the legacy original design plastic foot on the Robo-Arm helper cylinder. Note: original bead rollers and brackets are not compatible and cannot be used in tandem with the new-design foot.

Machine Location:

This foot mounts directly at the terminal end of the pneumatic helper cylinder (Robo-Arm assembly) on the right-hand tower of the tire changer. It attaches via a pivot bolt to press down on the tire bead during mounting cycles.

Key Features & Specifications

  • Heavy-Duty Engineered Plastic: Designed to bear full pneumatic cylinder force (up to 150 PSI) without cracking or flexing.
  • Direct Bolt-on Upgrade: Specifically sized to mount seamlessly on the factory-spec Robo-Arm cylinder rod adapter.
  • Contoured Pressing Angle: Features a radiused pressing surface that nests perfectly onto tire sidewalls without scuffing the alloy rim flange.

Complete Machine Compatibility

This universal replacement part is documented and verified to fit the following Coats® equipment models:

  • Coats 7050 Rim Clamp Tire Changer
  • Coats 7060 Rim Clamp Tire Changer
  • Coats 7065 Rim Clamp Tire Changer
  • Coats 70X-Model Series Rim Clamp Tire Changer
  • Coats 80C Center Clamp Tire Changer
  • Coats 90C Center Clamp Tire Changer

Frequently Bought Together / Related Parts

These drawing-adjacent parts connect directly next to this part on your parts breakdown and assembly drawings:

🔧 Pro Installer Tip:

When swapping this foot onto your Robo-Arm helper arm, inspect the main pivot pin for scoring or metal play. Apply a drop of medium-strength blue thread locker (Blue Loctite) to the pivot mounting bolt to ensure the foot remains secure during the high-speed rotational forces of tire mounting.

Alternative / Cross-Reference Part Numbers: SVI BW-2591-67 | Coats 85009167 | Coats 8500916701 | Distributor AM85009167

AMMCO and COATS are registered trademarks of The Coats Company. AEPN Inc. is not associated in any way with The Coats Company, Inc. Any names, symbols, numbers, and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers.
