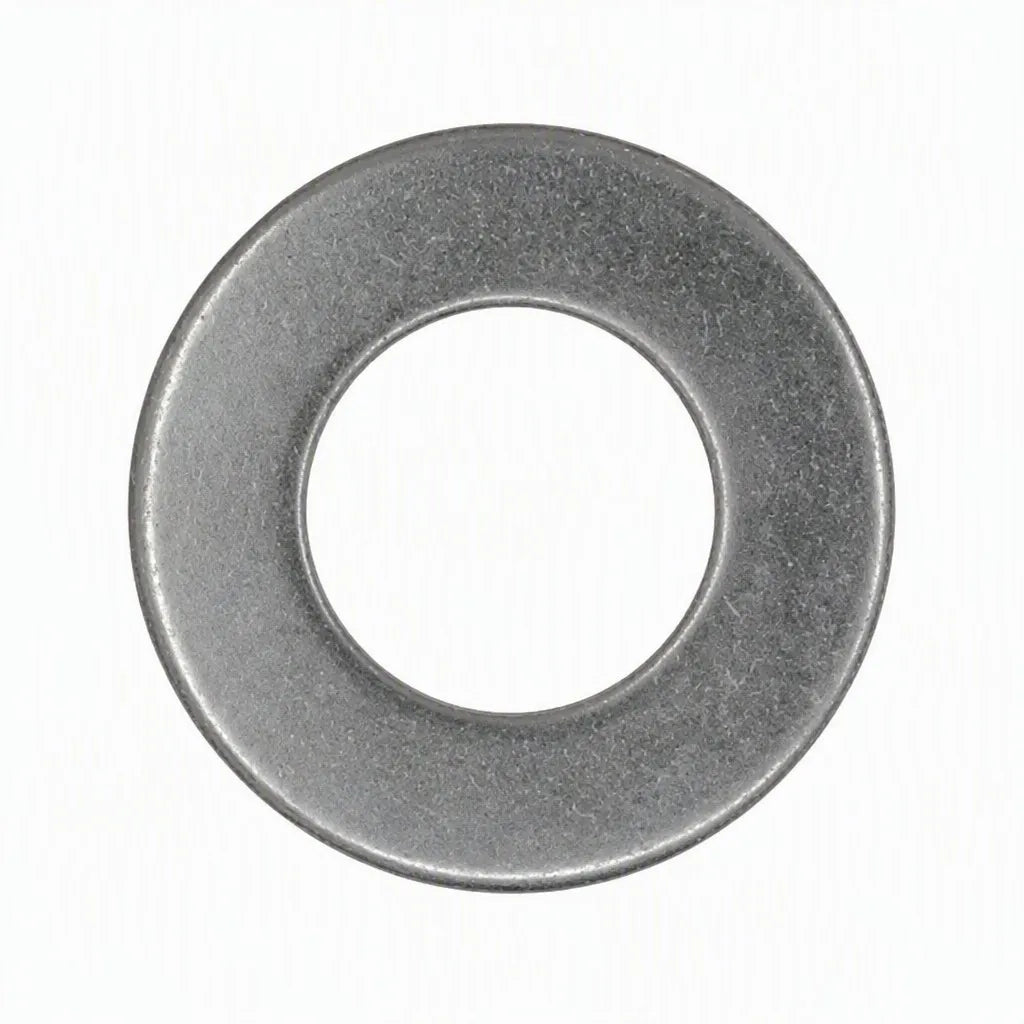

Coats Washer-Flat,3/4 Sae (AM8182457)

Flat,3"/4" Sae Washer (Coats 8182457)

Price

  • $15.09
  • $16.30

Quantity

Shipping calculated at checkout.

Upgrade & Restore Your Tire Changer's Pivot Assemblies

The Flat,3"/4" Sae Washer is a heavy-duty mechanical washer engineered to distribute clamping loads evenly and reduce surface friction on moving pivot points and structural joints of professional tire changers.

Regular maintenance and timely replacement of worn or scored washers are critical to preventing mechanical binding on main hinge pins and keeping assemblies pivoting smoothly.

📋 Factory Service Bulletin Guidance:

Update Date: August 2013
Subject: Rim Clamp - 70H - BL Cylinder, Pivot, & Arm

Beginning in March of 2013, S/Ns 1303101566 & 1303101491, Discount Tire 70 Series Rim Clamp Tire Changers are equipped with a new bead loosener cylinder, a Heim joint instead of a pivot pin, and a slightly modified BL arm to accommodate the Heim joint. The same changes are going into effect on all standard production, hand control, 70 series models today beginning with S/N 1308100031. BL Arm Change: An interior welded support plate was moved slightly to allow clearance for the Heim joint. Note that the part number (8182002) for the BL Arm has not changed and that the new design is backward compatible but the old design is not forward compatible.

Update Date: November 2015
Subject: Changes in Heim Joint Hardware

Notice of change in hardware used to secure Heim Joint in the X model Tire Changers equipped with Heim Joints. Due to stack-up tolerance issues, Hennessy has decided to eliminate the two washers used in the assembly that attaches the heim joint to the BL arm. It is just now the screw, 3 spacers, and nylon locking nut. Original Design: Current Production: No action is required on your part but please be advised not submit requests for these washers as missing parts. Washer 8182457 No Longer Used Washer 8182457 - No Longer Used Bolt - 8182579 Nut - 8182016 SPACER 85608567, 2 each SPACER 85608566 1 each

Machine Location:

This washer is located directly on vertical hinge pins, swing arm pivot joints, or bead breaker arm cylinders.

Key Features & Specifications

  • Hardened Steel Body: Stamped from high-strength steel to resist flattening, warping, or scoring under heavy loads.
  • Optimal Load Distribution: Prevents structural fasteners from wearing into softer castings or aluminum blocks.
  • Rust Resistance: Zinc-plated finish provides defense against shop humidity and compressor condensation.

Complete Machine Compatibility

This universal replacement part is documented and verified to fit the following Coats® equipment models:

  • Coats 50/60/70/80/90 X-Model Series Tire Changer
  • Coats 5030 A/E Tire Changer
  • Coats 5035 A/E Tire Changer
  • Coats 5040 A/E Tire Changer
  • Coats 50Xx Series Tire Changer
  • Coats 6050 A/E/Ax/Ex Tire Changer
  • Coats 6060 Ax/Ex Tire Changer
  • Coats 6065 A/E/Ax/Ex Tire Changer
  • Coats 7Xxx Series Tire Changer (Prior 2010)
  • Coats 950 Pro Racer
  • Coats APX Rim Clamp Tire Changer
  • Coats Gts50, Gts60, Gts70 And Gts-90 Rim Clamp Tire Changers

Frequently Bought Together / Related Parts

These drawing-adjacent parts connect directly next to this part on your parts breakdown and assembly drawings:

🔧 Pro Installer Tip:

For moving pivot shafts, apply a thin layer of grease to both faces of the washer during installation to eliminate friction.

Alternative / Cross-Reference Part Numbers: SVI BW-1224-57 | Coats 8182457 | Distributor AM8182457

AMMCO and COATS are registered trademarks of The Coats Company. AEPN Inc. is not associated in any way with The Coats Company, Inc. Any names, symbols, numbers, and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers.
