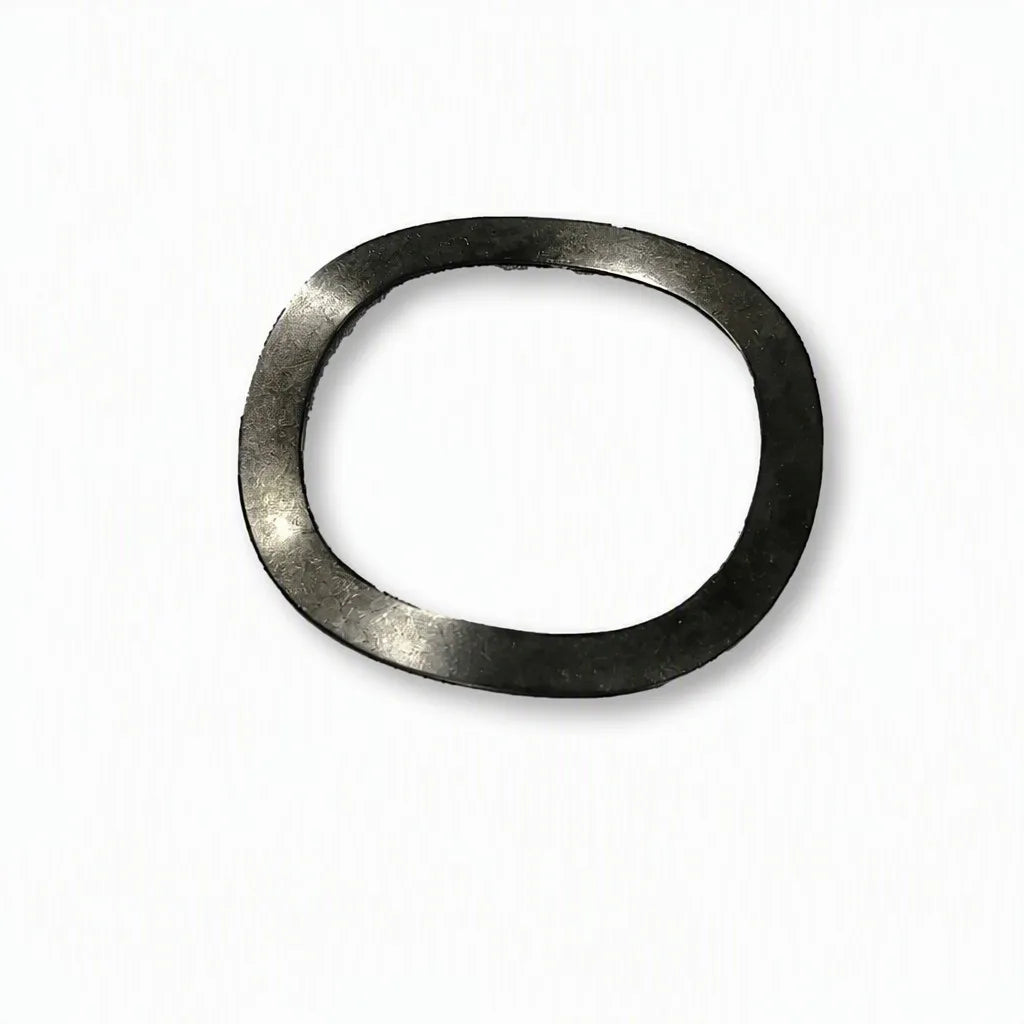

Wave Spring Washer Coats (AM8182371)

Wave Spring Washer (Coats 8182371)

Price

  • $15.09
  • $16.30

Quantity

Shipping calculated at checkout.

Upgrade & Restore Your Tire Changer's Locking Grip

The 8182371 Wave Spring Washer is a high-tension, precision component engineered to maintain maximum vertical rigidity on professional tire changers. Over time, original wave washers flatten, lose their spring tension, or crack under repeated stress. This degradation leads to slippage in your locking tower, causing the mount/demount head to drift upward or flex when mounting low-profile or stiff-bead tires.

Installing a fresh, factory-spec wave washer restores optimal axial tension, ensuring a tight, unyielding grip on the vertical slide shaft during heavy-duty operations.

Key Features & Specifications

  • Precise Fitment: 1-5/8" nominal diameter.
  • Premium Spring Steel: Built to withstand repeated high-pressure load compression without settling or flattening.
  • Exact Shaft Location: Installed directly on the Vertical Slide Shaft on the swing arm/locking mast assembly, positioned perfectly between the vertical slide lock plate and the 1-5/8" retaining snap ring (Part # 8181095).

Complete Machine Compatibility

This universal wave spring washer is verified to fit the following Coats Rim Clamp® tire changers:

  • Coats X-Model Series: 50X-1, 50X-2, 50X-3, 60X, 70X, 80X, 90X (including A, E, AX, and EX models)
  • Coats MAXX Series: MAXX 50, MAXX 60, MAXX 70, MAXX 80, MAXX 90 (all configurations)
  • Coats GTS Series: GTS-50, GTS-60, GTS-70, GTS-90
  • Coats Classic 50xx Series: 5030, 5030A/E, 5035, 5035A/E, 5040, 5040A/E, 5050, 5050A/E, 5060, 5060A/E, 5060AX/EX, 5065A/E
  • Coats Classic 60xx & 70xx Series: 6050A/E, 6060AX/EX, 6065A/E, 7050AX/EX, 7055, 7060AX/EX, 7065AX/EX, 7665
  • Coats RC Series: RC-1, RC-5, RC-10, RC-15, RC-20, RC-45A/E, RC-55A/E, RC-100, RC-150EX, RC-200EX
  • Coats Center Clamp Series: 80C, 90C

Frequently Bought Together / Related Parts

🔧 Pro Installer / TSB Diagnostic Tip:

If your vertical slide is slipping or drifting upward during tire mounting, the factory service manual notes that the lock cylinder should be checked for an active locking stroke of 7/16" to 5/8". If the stroke is correct but slippage continues, the vertical lock plate and this 1-5/8" wave washer are likely worn or flattened and should be replaced together to restore full holding power.

Alternative / Cross-Reference Part Numbers: SVI BW-1223-71 (or BW-1201-06) | Coats 182371 | OEM 7182371 | Distributor AM8182371

AMMCO and COATS are registered trademarks of The Coats Company. AEPN Inc. is not associated in any way with The Coats Company, Inc. Any names, symbols, numbers, and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers.
