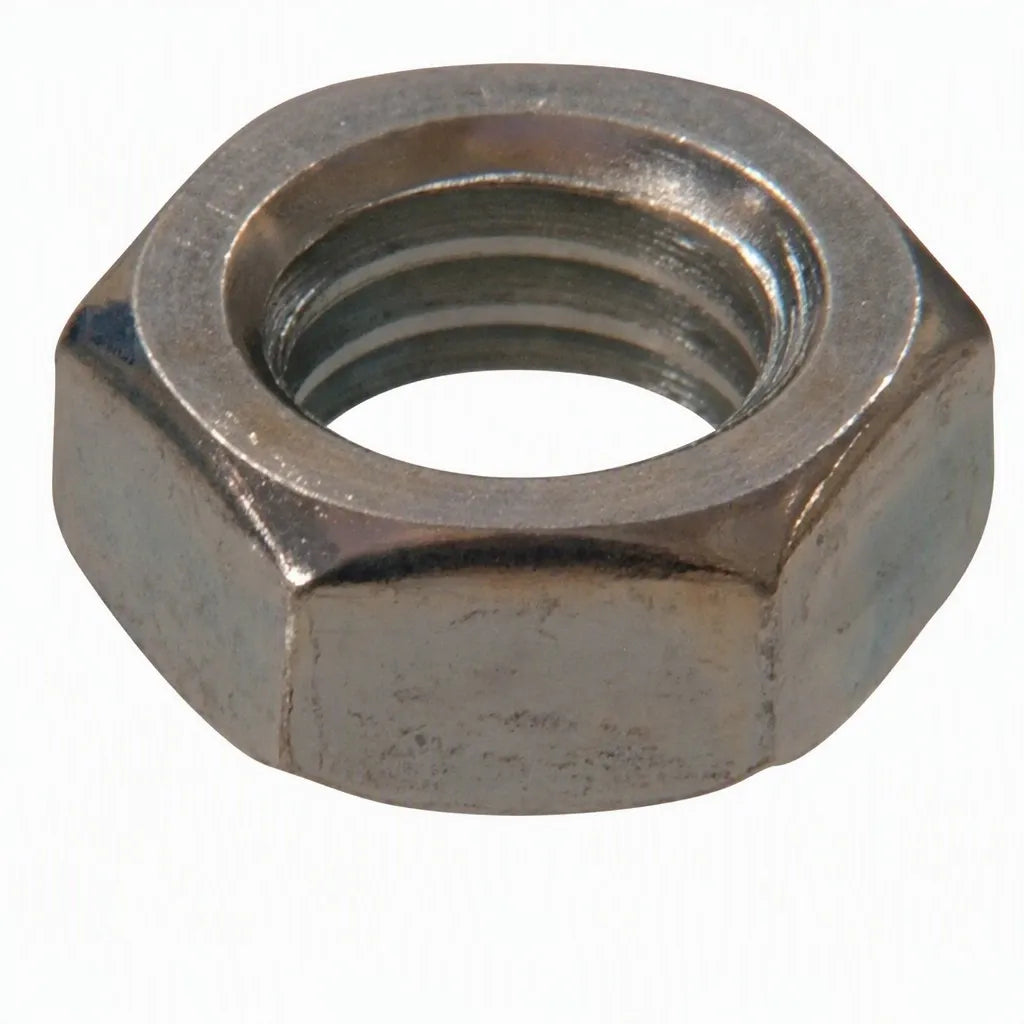

Coats Jam Nut 1/2-13 (AM8181113)

13" Jam Nut 1/2" (Coats 8181113)

Price

  • $15.09
  • $16.30

Quantity

Shipping calculated at checkout.

Upgrade & Restore Your Tire Changer's Mechanical Rigidity

The 13" Jam Nut 1/2" is a heavy-duty, direct-replacement locknut/jam nut designed to secure critical pivot pins, cylinder rods, and mechanical linkages on professional tire changers.

Under continuous mechanical shock and intense shop vibrations, locking nuts can back off or strip, introducing play in foot pedals and table assemblies. This fine-thread replacement nut holds torque securely.

📋 Factory Service Bulletin Guidance:

Update Date: June 2019
Subject: Cam Roller Assy for 90X and MaXX

The Lock Plate Lift Pin (8181035) has been replaced with the Cam Roller Assembly (85611540) for the 90X and MaXX Tire Changers. If you are replacing this item on ANY Tire Changer, you must order the New Part number (85611540). When installing the Cam Roller Assembly, thread it completely into the Swing Arm Lock Plate until it stops. Then rotate it ½ turn at a time to adjust the Lock Handle tension. Ensuring that the Assembly slot aligns with the length of the Swing Arm when adjustment complete. Install the Jam Nut (8181113) snug.

Machine Location:

This fastener threads directly onto the foot pedal linkages, cylinder mounting pins, or vertical slide locking shafts inside the tire changer's cabinet.

Key Features & Specifications

  • Carbon Steel Forging: High-tensile carbon steel body built to resist thread stripping and mechanical shear.
  • Corrosion Shielding: Features a protective zinc coating to withstand compressor moisture and shop oil.
  • High Vibration Resistance: Designed to lock threads firmly in high-shock mechanical pivot points.

Complete Machine Compatibility

This universal replacement part is documented and verified to fit the following Coats® equipment models:

  • Coats 50/60/70/80/90 X-Model Series Tire Changer
  • Coats 5030 A/E Tire Changer
  • Coats 5035 A/E Tire Changer
  • Coats 5040 A/E Tire Changer
  • Coats 6050 A/E/Ax/Ex Tire Changer
  • Coats 6060 Ax/Ex Tire Changer
  • Coats 7Xxx Series Tire Changer (Prior 2010)
  • Coats 80C 90C Center Clamp Tire Changer (Revision 1)
  • Coats 80C 90C Center Clamp Tire Changer (Revision 2)
  • Coats 85613210 Maxx Model
  • Coats APX Rim Clamp Tire Changer
  • Coats Dt Maxx

Frequently Bought Together / Related Parts

These drawing-adjacent parts connect directly next to this part on your parts breakdown and assembly drawings:

🔧 Pro Installer Tip:

Clean the mating threads with a wire brush to remove shop grit before threading. Always tighten lock nuts with a backup wrench to prevent twisting neighboring linkages.

Alternative / Cross-Reference Part Numbers: SVI BW-1201-07 | Coats 8181113 | Distributor AM8181113

AMMCO and COATS are registered trademarks of The Coats Company. AEPN Inc. is not associated in any way with The Coats Company, Inc. Any names, symbols, numbers, and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers.
