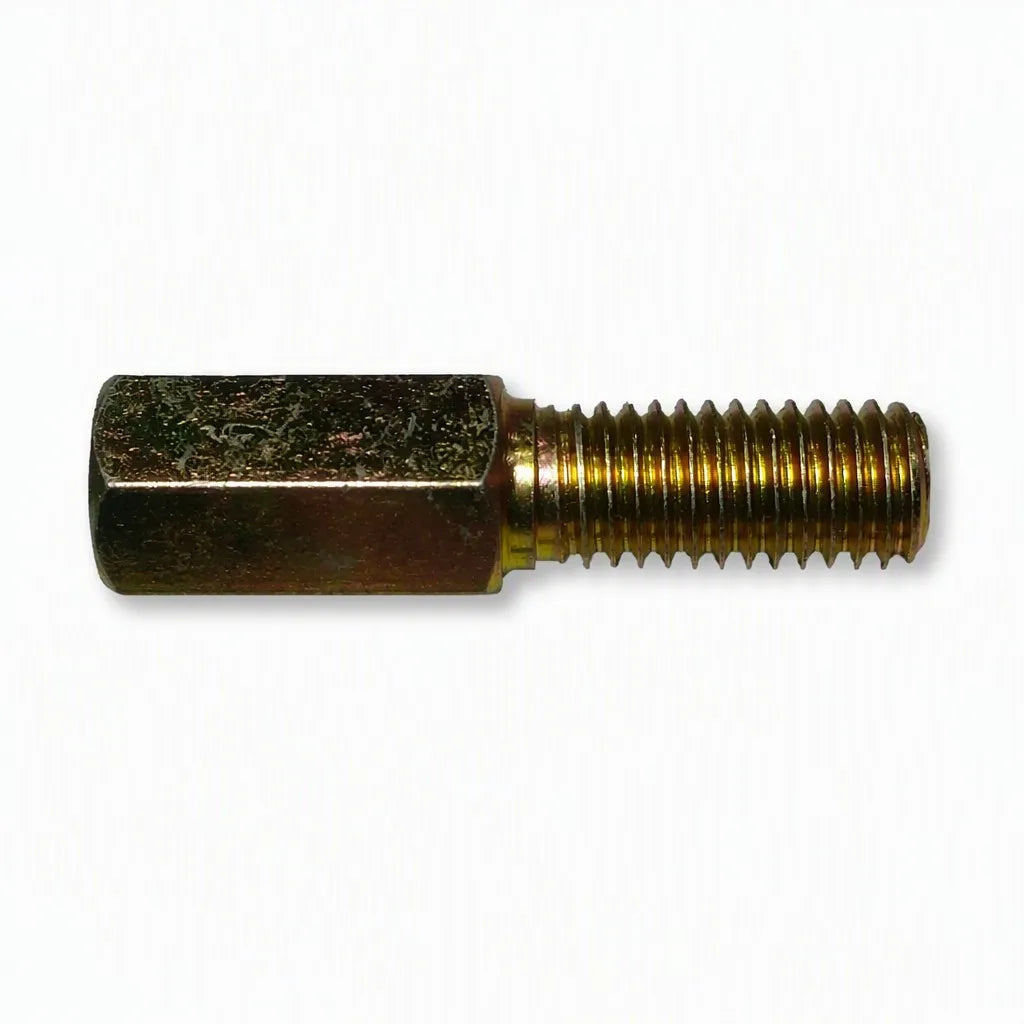

Lift Pin Lock Plate Coats (AM8181035)

Lift Pin Lock Plate (Coats 8181035)

Price

  • $15.00
  • $16.20

Quantity

Shipping calculated at checkout.

Upgrade & Restore Your Tire Changer's Performance

The Lift Pin Lock Plate is a high-quality direct-replacement part designed for professional tire changers. Engineered to precise factory tolerances, it replaces original equipment part number 8181035 to keep your machinery in peak operating condition.

Timely replacement of worn mechanical hardware and consumables is critical to avoiding major component damage and reducing expensive bay downtime.

📋 Factory Service Bulletin Guidance:

Update Date: June 2019
Subject: Cam Roller Assy for 90X and MaXX

The Lock Plate Lift Pin (8181035) has been replaced with the Cam Roller Assembly (85611540) for the 90X and MaXX Tire Changers. If you are replacing this item on ANY Tire Changer, you must order the New Part number (85611540). When installing the Cam Roller Assembly, thread it completely into the Swing Arm Lock Plate until it stops. Then rotate it ½ turn at a time to adjust the Lock Handle tension. Ensuring that the Assembly slot aligns with the length of the Swing Arm when adjustment complete. Install the Jam Nut (8181113) snug.

Machine Location:

This part is positioned in the primary mechanical assemblies or utility configurations of the tire changer.

Key Features & Specifications

  • Engineered Longevity: Built from durable materials designed to handle high-volume shop environments.
  • Direct Fitment: Designed to replace original hardware with no modifications or alignment adjustments required.
  • OEM Specifications: Fits perfectly to prevent mechanical play and preserve factory-spec alignment.

Complete Machine Compatibility

This universal replacement part is documented and verified to fit the following Coats® equipment models:

  • Coats 50/60/70/80/90 X-Model Series Tire Changer
  • Coats 5030 A/E Tire Changer
  • Coats 5035 A/E Tire Changer
  • Coats 5040 A/E Tire Changer
  • Coats 50Xx Series Tire Changer
  • Coats 6050 A/E/Ax/Ex Tire Changer
  • Coats 6060 Ax/Ex Tire Changer
  • Coats 6065 A/E/Ax/Ex Tire Changer
  • Coats 7Xxx Series Tire Changer (Prior 2010)
  • Coats RC-45 A/E, RC-55 A/E Tire Changer
  • Coats Rc200Ex, Rc150Ex Tire Changer

Frequently Bought Together / Related Parts

These drawing-adjacent parts connect directly next to this part on your parts breakdown and assembly drawings:

🔧 Pro Installer Tip:

Always refer to your equipment's official parts manual before final installation to confirm the exact alignment and torque sequence.

Alternative / Cross-Reference Part Numbers: SVI BW-1201-09 | Coats 8181035 | Distributor AM8181035

AMMCO and COATS are registered trademarks of The Coats Company. AEPN Inc. is not associated in any way with The Coats Company, Inc. Any names, symbols, numbers, and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers.
