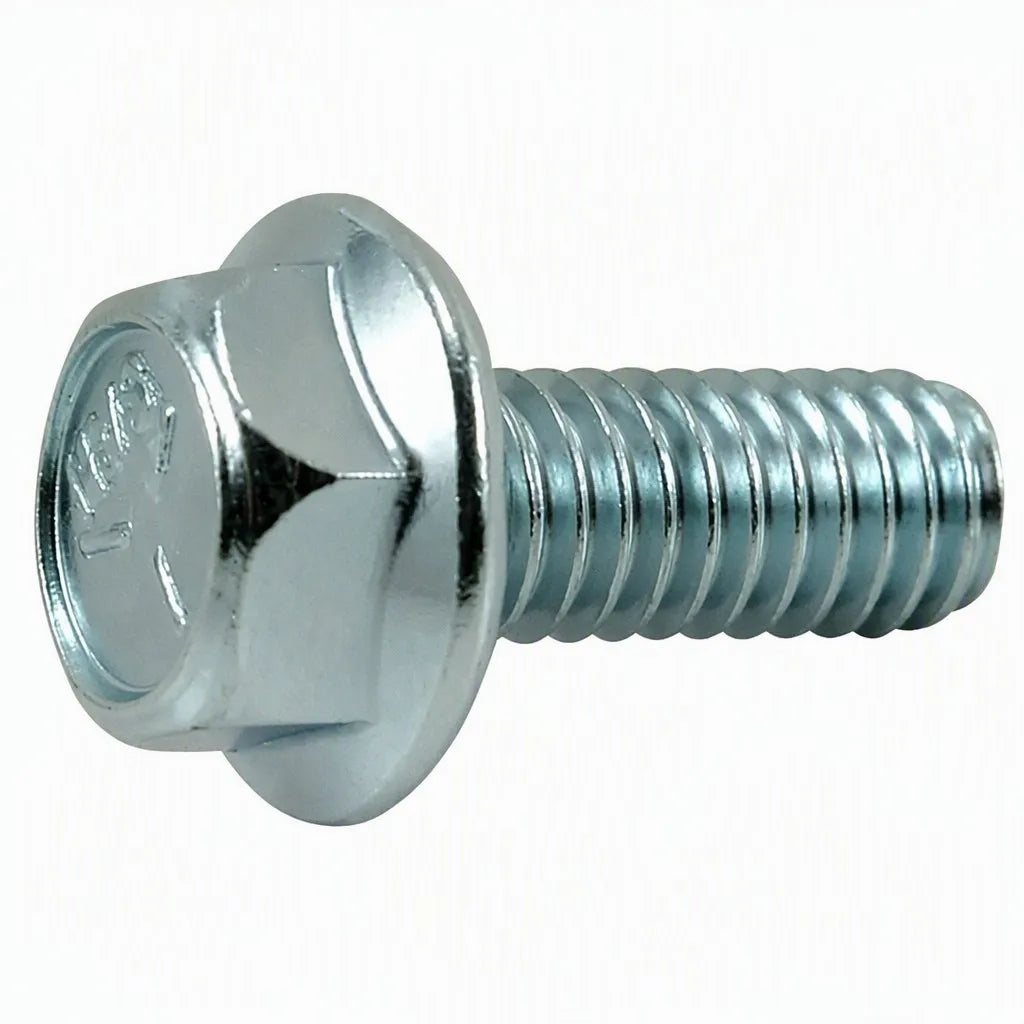

Coats Bolt 1/4-20 X 3/4 Hex (AM8106301)

1"/4"-20" X 3"/4" Hex Head Washer Cap Bolt (Coats 8106301)

Price

  • $15.09
  • $16.30

Quantity

Shipping calculated at checkout.

Upgrade & Restore Your Tire Changer's Performance

The 1"/4"-20" X 3"/4" Hex Head Washer Cap Bolt is a high-quality direct-replacement part designed for professional tire changers. Engineered to precise factory tolerances, it replaces original equipment part number 8106301 to keep your machinery in peak operating condition.

Timely replacement of worn mechanical hardware and consumables is critical to avoiding major component damage and reducing expensive bay downtime.

đź“‹ Factory Service Bulletin Guidance:

Update Date: Date Unavailable
Subject: SHADOW BOARD / ACCESSORY PEGS MOUNTING

Due to an ongoing engineering change, there have been a number of Wheel Balancer Chassis components made so that the accessory mounting holes are not aligned. (see picture below) When encountering this issue, the following procedure should be used. 1. On 1400/1500/1600 Wheel Balancers, the Shadow Boards can be mounted using four of the 8106301 Screws. (see below) 2. On 1100/1150 Wheel Balancers, the Chassis will need to have four additional #1 (.228”) holes drilled for the Accessory Pegs to be properly aligned. NOTE: Take care when drilling holes to ensure clearance of internal components and to catch the metal chips. Date: 2017-January 16

Machine Location:

This part is positioned in the primary mechanical assemblies or utility configurations of the tire changer.

Key Features & Specifications

  • Engineered Longevity: Built from durable materials designed to handle high-volume shop environments.
  • Direct Fitment: Designed to replace original hardware with no modifications or alignment adjustments required.
  • OEM Specifications: Fits perfectly to prevent mechanical play and preserve factory-spec alignment.

Complete Machine Compatibility

This universal replacement part is documented and verified to fit the following Coats® equipment models:

  • Coats 1000 / 1000D Balancer
  • Coats 1001 & 1001Sc Balancer
  • Coats 1100 Series Balancer
  • Coats 1250 Series Balancer
  • Coats 1300, 1400, 1500 And 1600 Wheel Balancer
  • Coats 200 Motorcycle Tire Changer
  • Coats 220 Motorcycle Tire Changer
  • Coats 4000E Drum And Disc Brake Lathe
  • Coats 4050A Tire Changer
  • Coats 4070 Tire Changer
  • Coats 50/60/70/80/90 X-Model Series Tire Changer
  • Coats 5030 A/E Tire Changer

Frequently Bought Together / Related Parts

These drawing-adjacent parts connect directly next to this part on your parts breakdown and assembly drawings:

🔧 Pro Installer Tip:

Always refer to your equipment's official parts manual before final installation to confirm the exact alignment and torque sequence.

Alternative / Cross-Reference Part Numbers: SVI BW-1663-01 | Coats 8106301 | Distributor AM8106301

AMMCO and COATS are registered trademarks of The Coats Company. AEPN Inc. is not associated in any way with The Coats Company, Inc. Any names, symbols, numbers, and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers.
