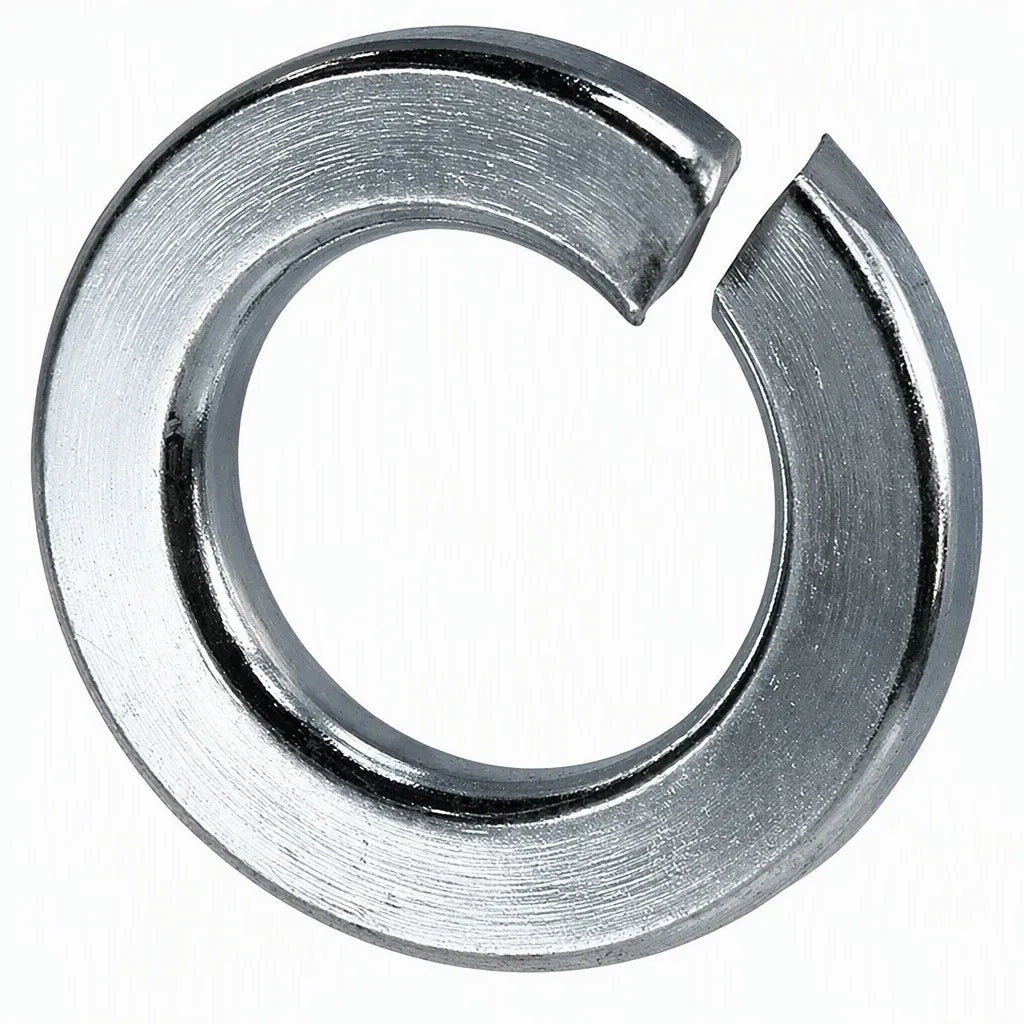

Coats Lock Washer 5/8 (AM8104613)

5/8" Lock Washer (Coats 8104613)

Price

  • $15.09
  • $16.30

Quantity

Shipping calculated at checkout.

Upgrade & Restore Your Tire Changer's Pivot Assemblies

The 5/8" Lock Washer is a heavy-duty mechanical washer engineered to distribute clamping loads evenly and reduce surface friction on moving pivot points and structural joints of professional tire changers.

Regular maintenance and timely replacement of worn or scored washers are critical to preventing mechanical binding on main hinge pins and keeping assemblies pivoting smoothly.

📋 Factory Service Bulletin Guidance:

Update Date: November 2012
Subject: Rim Clamp - Dual Inflation Valve

We have produced a pilot run of dual stage inflation valve assemblies on 25 Model 5040 Rim Clamp units. Following are the part numbers that were removed from the original assembly: 8000378, 8104673, 8104613, 8104611, 8104600, 8106298, 8184469, 8101898, and 8182020. Following are the part numbers that were added to the new assembly: 8184467, 8104573 When available, the part number for the dual stage inflation valve will be 85607575. Contact your RSM if one is needed prior to full production release. We will want the defective valve returned to Hennessy.

Machine Location:

This washer is located directly on vertical hinge pins, swing arm pivot joints, or bead breaker arm cylinders.

Key Features & Specifications

  • Hardened Steel Body: Stamped from high-strength steel to resist flattening, warping, or scoring under heavy loads.
  • Optimal Load Distribution: Prevents structural fasteners from wearing into softer castings or aluminum blocks.
  • Rust Resistance: Zinc-plated finish provides defense against shop humidity and compressor condensation.

Complete Machine Compatibility

This universal replacement part is documented and verified to fit the following Coats® equipment models:

  • Coats 4050 Center Post
  • Coats 4050A Tire Changer
  • Coats 4070 Tire Changer
  • Coats 50/60/70/80/90 X-Model Series Tire Changer
  • Coats 5030 A/E Tire Changer
  • Coats 5035 A/E Tire Changer
  • Coats 5040 A/E Tire Changer
  • Coats 50Xx Series Tire Changer
  • Coats 6050 A/E/Ax/Ex Tire Changer
  • Coats 6060 Ax/Ex Tire Changer
  • Coats 6065 A/E/Ax/Ex Tire Changer
  • Coats 7Xxx Series Tire Changer (Prior 2010)

Frequently Bought Together / Related Parts

These drawing-adjacent parts connect directly next to this part on your parts breakdown and assembly drawings:

🔧 Pro Installer Tip:

For moving pivot shafts, apply a thin layer of grease to both faces of the washer during installation to eliminate friction.

Alternative / Cross-Reference Part Numbers: SVI BW-1646-13 | Coats 8104613 | Distributor AM8104613

AMMCO and COATS are registered trademarks of The Coats Company. AEPN Inc. is not associated in any way with The Coats Company, Inc. Any names, symbols, numbers, and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers.
