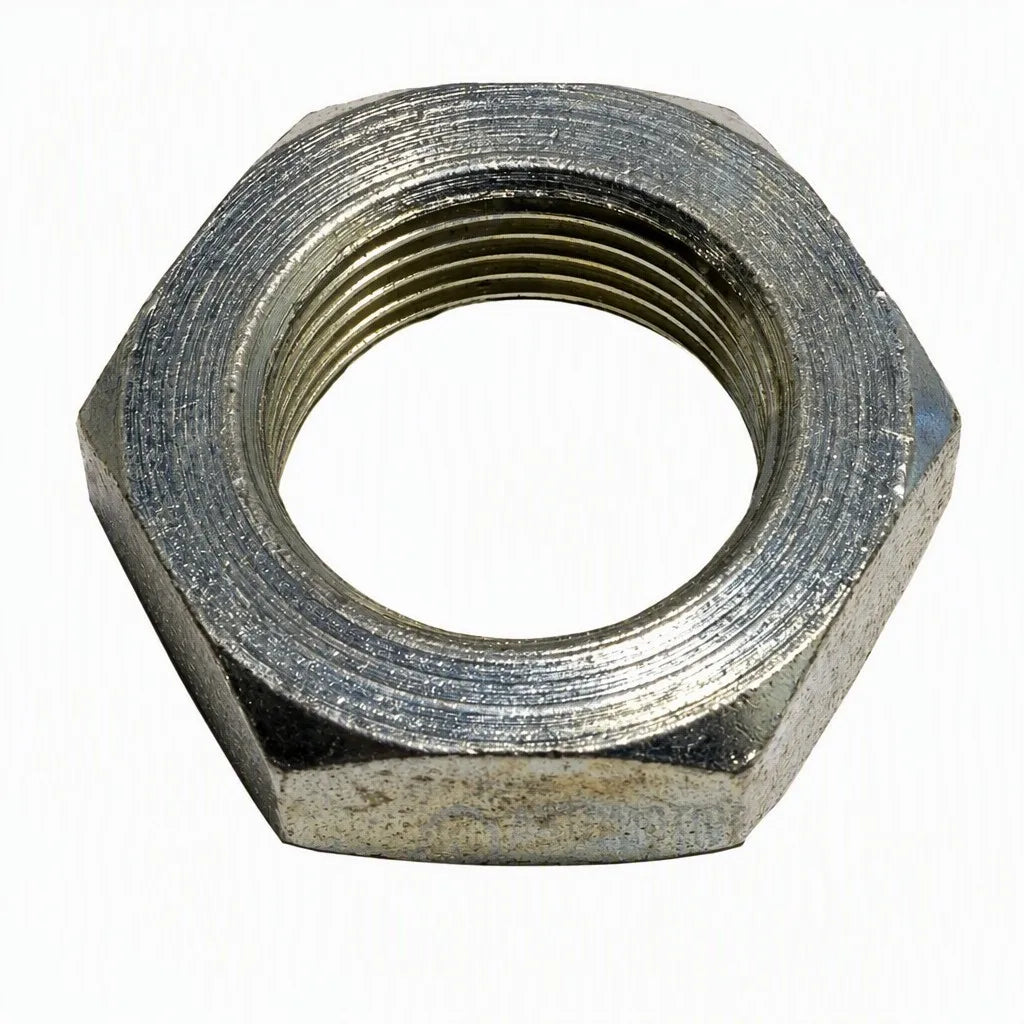

Coats Jam Nut 5/8-18 (AM8104611)

5"/8"-18" Jam Nut (Coats 8104611)

Price

  • $15.09
  • $16.30

Quantity

Shipping calculated at checkout.

Upgrade & Restore Your Tire Changer's Mechanical Rigidity

The 5"/8"-18" Jam Nut is a heavy-duty, direct-replacement locknut/jam nut designed to secure critical pivot pins, cylinder rods, and mechanical linkages on professional tire changers.

Under continuous mechanical shock and intense shop vibrations, locking nuts can back off or strip, introducing play in foot pedals and table assemblies. This fine-thread replacement nut holds torque securely.

📋 Factory Service Bulletin Guidance:

Update Date: November 2012
Subject: Rim Clamp - Dual Inflation Valve

We have produced a pilot run of dual stage inflation valve assemblies on 25 Model 5040 Rim Clamp units. Following are the part numbers that were removed from the original assembly: 8000378, 8104673, 8104613, 8104611, 8104600, 8106298, 8184469, 8101898, and 8182020. Following are the part numbers that were added to the new assembly: 8184467, 8104573 When available, the part number for the dual stage inflation valve will be 85607575. Contact your RSM if one is needed prior to full production release. We will want the defective valve returned to Hennessy.

Machine Location:

This fastener threads directly onto the foot pedal linkages, cylinder mounting pins, or vertical slide locking shafts inside the tire changer's cabinet.

Key Features & Specifications

  • Carbon Steel Forging: High-tensile carbon steel body built to resist thread stripping and mechanical shear.
  • Corrosion Shielding: Features a protective zinc coating to withstand compressor moisture and shop oil.
  • High Vibration Resistance: Designed to lock threads firmly in high-shock mechanical pivot points.

Complete Machine Compatibility

This universal replacement part is documented and verified to fit the following Coats® equipment models:

  • Coats 4050 Center Post
  • Coats 4050A Tire Changer
  • Coats 4070 Tire Changer
  • Coats 50/60/70/80/90 X-Model Series Tire Changer
  • Coats 5030 A/E Tire Changer
  • Coats 5035 A/E Tire Changer
  • Coats 5040 A/E Tire Changer
  • Coats 50Xx Series Tire Changer
  • Coats 6050 A/E/Ax/Ex Tire Changer
  • Coats 6060 Ax/Ex Tire Changer
  • Coats 6065 A/E/Ax/Ex Tire Changer
  • Coats 7Xxx Series Tire Changer (Prior 2010)

Frequently Bought Together / Related Parts

These drawing-adjacent parts connect directly next to this part on your parts breakdown and assembly drawings:

🔧 Pro Installer Tip:

Clean the mating threads with a wire brush to remove shop grit before threading. Always tighten lock nuts with a backup wrench to prevent twisting neighboring linkages.

Alternative / Cross-Reference Part Numbers: SVI BW-1646-11 | Coats 8104611 | Distributor AM8104611

AMMCO and COATS are registered trademarks of The Coats Company. AEPN Inc. is not associated in any way with The Coats Company, Inc. Any names, symbols, numbers, and descriptions are used for reference purposes only. It is not implied that any part listed is the product of these manufacturers.
