Upgrade & Restore Your Tire Changer's Mechanical Rigidity

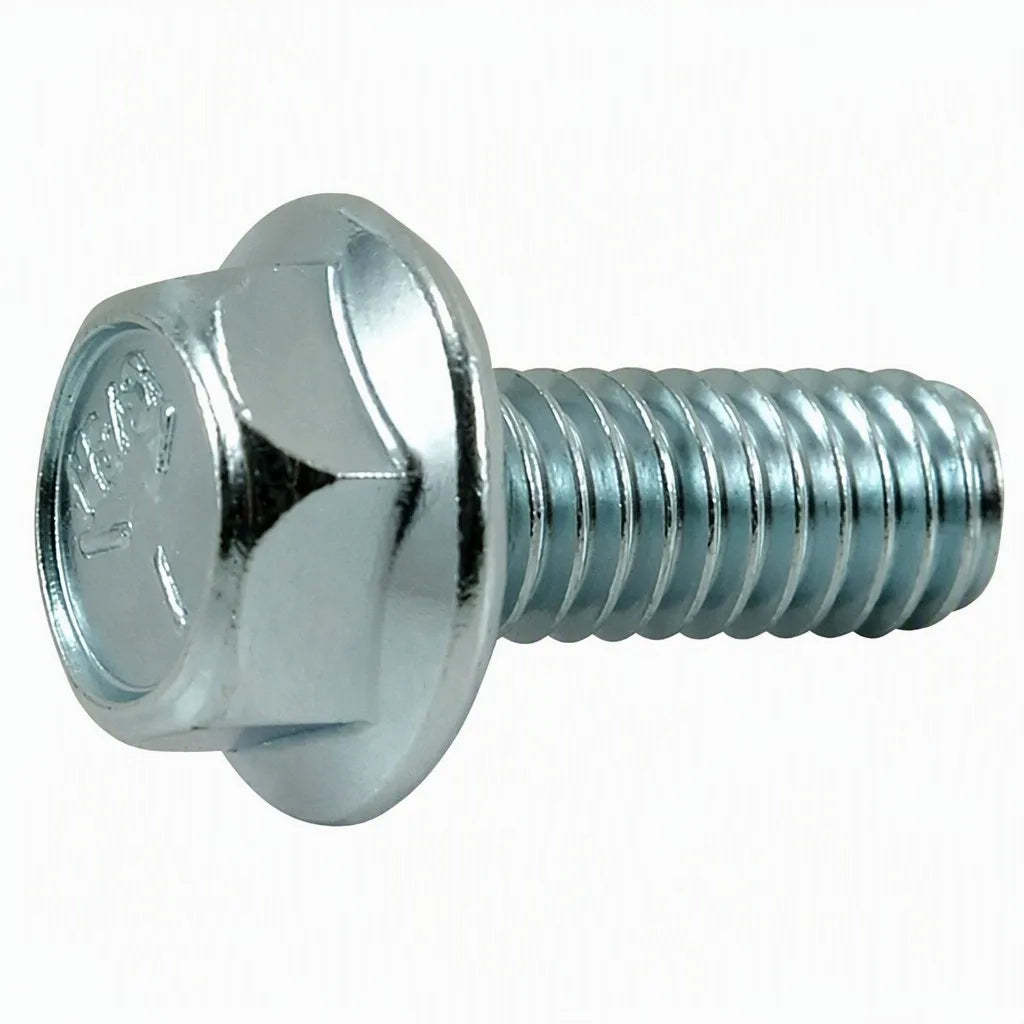

The 3/8"-16" X 3/4" Hex Head Washer Cap Bolt (Coats 8102459) is a premium, Grade-5 hardened carbon steel structural fastener engineered for mounting brackets and cylinder rods directly to professional tire changer frames. It features a heavy-duty hexagonal head with an integrated flanged washer face to distribute high clamping forces evenly without marring the parent steel.

Under constant operational shocks (like bead-breaking hammer impacts and cylinder strokes), original hardware can stretch, fatigue, or strip. Replacing worn bolts with these rust-resistant, high-tensile fasteners secures your brackets and prevents structural frame play.

Machine Location:

This Grade 5 structural bolt mounts the Bead Breaker Cylinder bracket, the vertical slide lock housing, or the motor support plate securely to the tire changer frame.

Key Features & Specifications

• Hardened Grade 5 Steel: Medium carbon steel, quenched and tempered to provide excellent structural strength and shear resistance.
• Zinc-Plated Protection: Finished with an anti-corrosive zinc coating to withstand constant exposure to grease, oil, and shop humidity.
• Thread Specification: 3/8"-16 UNC coarse threads with a 3/4" total length and integrated washer cap.

Complete Machine Compatibility

This universal replacement washer cap bolt is verified to fit the following Coats Rim Clamp® tire changer families:

• Coats 200/220 Motorcycle Tire Changer
• Coats 4050 Center Post
• Coats 4050A Tire Changer
• Coats 4070 Tire Changer
• Coats 50/60/70/80/90 X-Model Series Tire Changer
• Coats 5030 A/E Tire Changer
• Coats 5035 A/E Tire Changer
• Coats 5040 A/E Tire Changer

Frequently Bought Together / Related Parts

These drawing-adjacent parts connect directly next to this mounting bolt on your cylinder and bracket mounting schematics:

• Coats 5/8"-11" X 5" Lg Hex Head Cap Screw (Part # 8182011)
• Coats Barbed 1/4" Fitting (Part # 8104844)
• Coats 6" To 20" Rim Clamping Jaw Set Of 4" 8182247-4 (Part # 8182247)
• Coats 3/4" NPT X 3/4" Barb Elbow Plastic Fitting (Part # 8107924)
• Coats B.L. Pin Location Decal (Part # 8181970)
• Coats Clevis Pin - 3/16" X 1-1/4" (Part # 8181977)
• Coats 1/4" X 16-1/4" Rubber Hose (Part # 8106288)
• Coats 1/4" NPT X 3/8" Barb Straight Fitting (Part # 8101898)
• Coats Hair Pin Cotter (Part # 8120469)
• Coats 3/4" Snap Ring (Part # 8101001)

Alternative / Cross-Reference Part Numbers: SVI BW-1624-59 (Order SVI F-HFTS-0375-16-0750) | Coats 8102459 | Distributor AM8102459
