Upgrade & Restore Your Tire Changer's Mechanical Rigidity

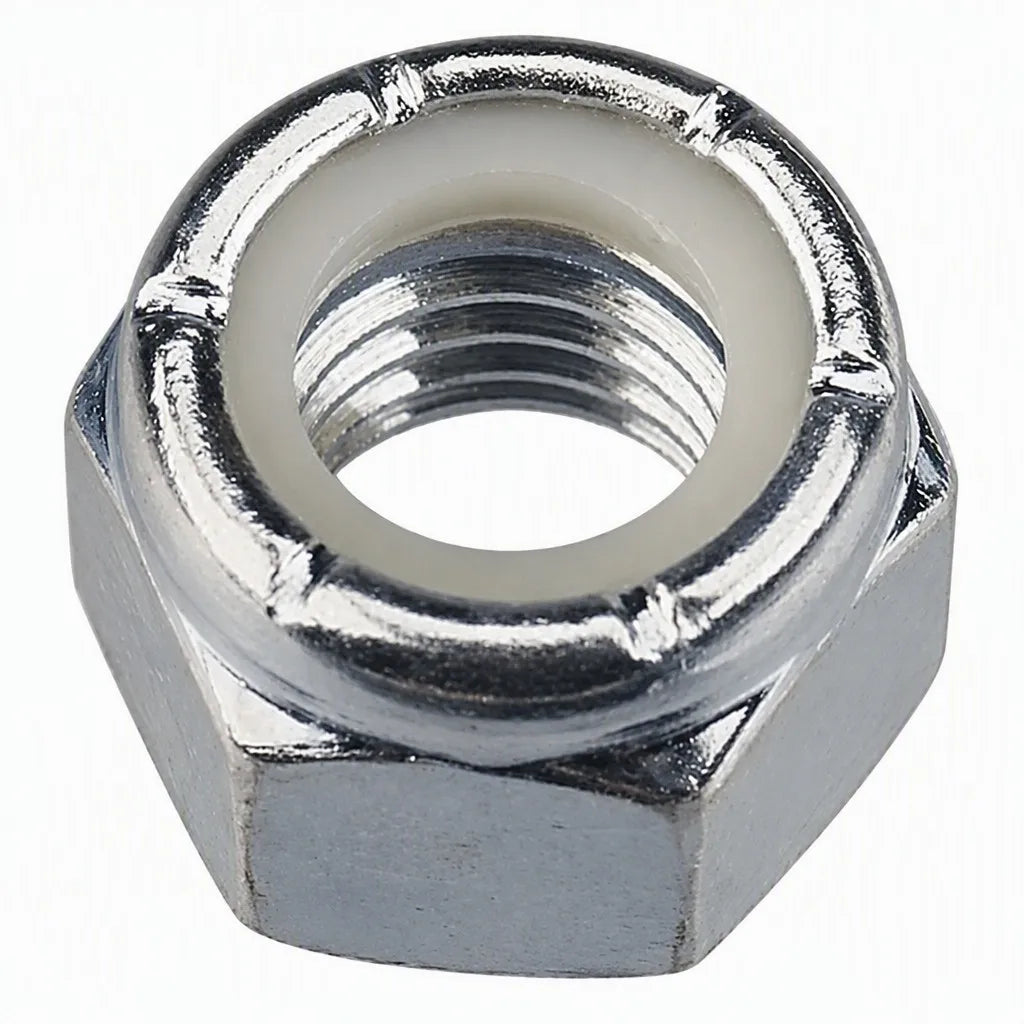

The 5/16"-18" Lock Nut (Coats 8000525) is a direct-replacement mechanical fastener engineered for the foot pedal linkage and pivot assemblies of professional tire changers. It features a high-tensile steel body and a prevailing-torque nylon insert to resist backing off under constant mechanical vibrations and operational pedal shocks.

Regular maintenance and timely replacement of worn lock nuts are critical to protecting your pedal links and cylinders from mechanical play and keeping your machine operating smoothly.

Machine Location:

This lock nut is used on the Foot Pedal Pivot Linkage assemblies, the Bead Breaker Arm pivot shafts, and various cylinder mounting brackets throughout the interior cabinet of the tire changer.

Key Features & Specifications

• Nylon-insert Zinc-Plated Steel: Forged steel construction finished with a corrosion-resistant zinc plating to protect against shop grease, oil, and moisture.
• Nylon Prevailing Torque Insert: A high-durability nylon ring deforms over the male thread upon assembly, creating a tight friction lock that resists back-off under high vibration.
• Thread Specification: Standard 5/16"-18 thread pitch.

Complete Machine Compatibility

This universal lock nut is verified to fit the following Coats Rim Clamp® tire changer families:

• Coats 1300, 1400, 1500 and 1600 Wheel Balancer
• Coats 4050A Tire Changer
• Coats 4070 Tire Changer
• Coats 85613512 E900

Frequently Bought Together / Related Parts

These drawing-adjacent parts connect directly next to this lock nut on your foot pedal and cylinder linkage schematics:

• Coats Support Bracket (Part # 8104120)
• Coats 1/8" X 1 Cotter Pin (Part # 8102278)
• Coats Air Chuck For Inflation Hose (Part # 8410419)
• Coats #6-32" Lock Nut (Part # 8111055)
• Coats Large Tube Weldment (Part # 8107655)
• Coats Clevis Pin (Part # 8107724)
• Coats 1/4" NPT X 1/4" Barb Straight Fitting (Part # 8000378)
• Coats St. Fitting 3/8" Male Elbow 1/4" NPT X 3/8" Tube (Part # 8181998)
• Coats Hex Head Cap Screw 1/2" X 5" (Part # 8107662)
• Coats 1/4" X 16-1/4" Rubber Hose (Part # 8106288)

Alternative / Cross-Reference Part Numbers: SVI BW-2105-25 (Order SVI F-LN-0312-18) | Coats 8000525 | Distributor AM8000525
